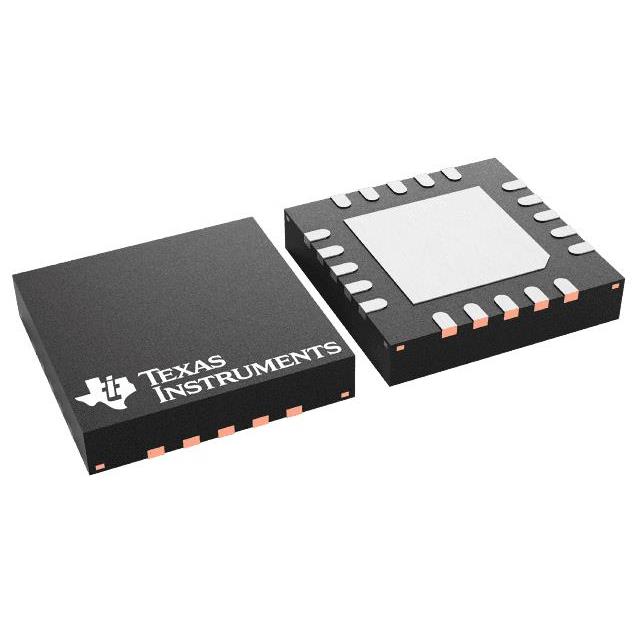

TPS7H1210MRGWSEP
RADIATION-TOLERANT, -3-V TO -16.Manufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Negative Adjustable 1 Output 1A 20-VQFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-VQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Output Configuration | Negative |
| Current - Quiescent (Iq) | 350 µA |
| Voltage - Input (Max) | -16.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 20-VQFN (5x5) |
| Voltage - Output (Max) | -15.5V |
| Voltage - Output (Min/Fixed) | -1.2V |
| Control Features | Current Limit, Enable |
| PSRR | 61dB ~ 41dB (100Hz ~ 1MHz) |
| Voltage Dropout (Max) | 0.5V @ 1A |
| Protection Features | Over Current, Over Temperature |
