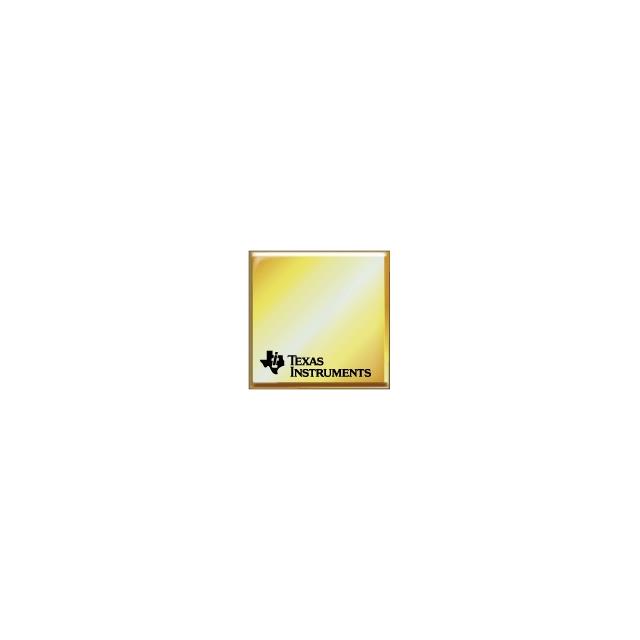

TPS7H1201SKGD1
IC REG LINEAR POS ADJ 500MA DIEManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments TPS7H1201SKGD1 is a high-performance, positive adjustable linear voltage regulator designed for demanding applications. This die-packaged device delivers up to 500mA output current with a low dropout voltage of 0.1V at 500mA, ensuring efficient power delivery. Key control features include current limiting, an enable pin for power sequencing, a power good indicator, and soft start functionality to mitigate inrush current. Protection mechanisms are built-in, offering over-current and over-temperature shutdown. The regulator boasts a wide input voltage range up to 7V and an output adjustable from 0.8V to 6.8V. Its impressive PSRR of 45dB to 20dB across the 1kHz to 100kHz frequency range makes it suitable for noise-sensitive circuits. Operating across an extended temperature range of -55°C to 210°C, the TPS7H1201SKGD1 finds application in aerospace, defense, and industrial sectors requiring robust and reliable power management solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Die |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 500mA |
| Operating Temperature | -55°C ~ 210°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 17 mA |
| Voltage - Input (Max) | 7V |
| Number of Regulators | 1 |
| Supplier Device Package | Die |
| Voltage - Output (Max) | 6.8V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| PSRR | 45dB ~ 20dB (1kHz ~ 100kHz) |
| Voltage Dropout (Max) | 0.1V @ 500mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 20 mA |
