TPS7A8401ARGRR
IC POWERManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

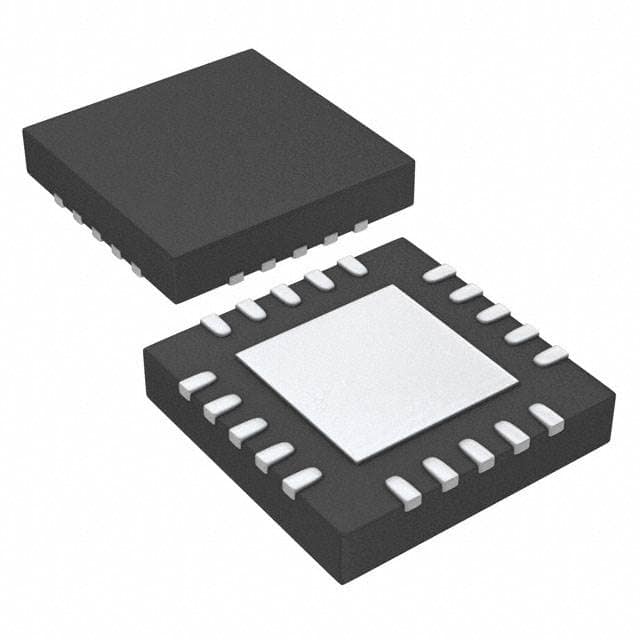

Linear Voltage Regulator IC Positive Adjustable/Programmable 1 Output 3A 20-VQFN (3.5x3.5)
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VFQFN Exposed Pad |
| Output Type | Adjustable/Programmable |
| Mounting Type | Surface Mount |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 4 mA |
| Voltage - Input (Max) | 6.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 20-VQFN (3.5x3.5) |
| Voltage - Output (Max) | 5.15V |
| Voltage - Output (Min/Fixed) | 0.5V |
| Control Features | Enable, Power Good, Soft Start |
| PSRR | 42dB ~ 25dB (10kHz ~ 500kHz) |
| Voltage Dropout (Max) | 0.45V @ 3A |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 5.5 mA |
