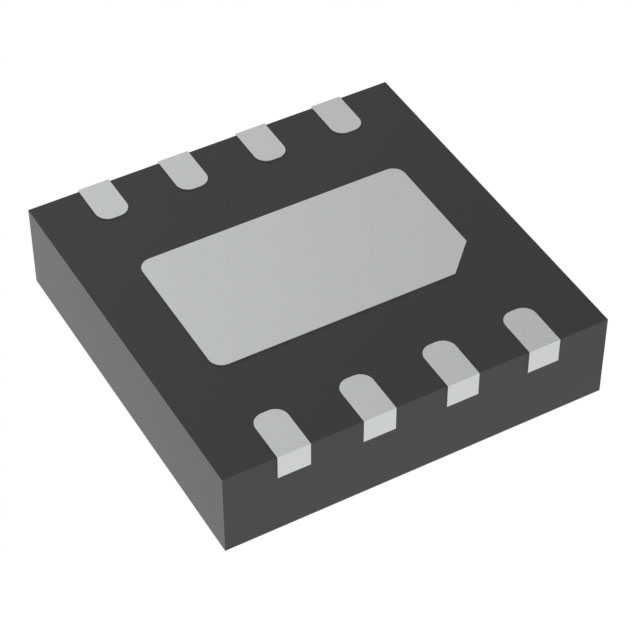

TPS7A7401DSDR
1.5-A LOW-DROPOUT (LDO) LINEAR RManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A 8-WSON (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1.5A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 330 µA |
| Voltage - Input (Max) | 6.1V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-WSON (3x3) |
| Voltage - Output (Max) | 3.6V |
| Voltage - Output (Min/Fixed) | 0.65V |
| Control Features | Current Limit, Enable, Soft Start |
| PSRR | 70dB ~ 50dB (1kHz ~ 1MHz) |
| Voltage Dropout (Max) | 0.18V @ 1.5A |
| Protection Features | Over Current, Over Temperature |
