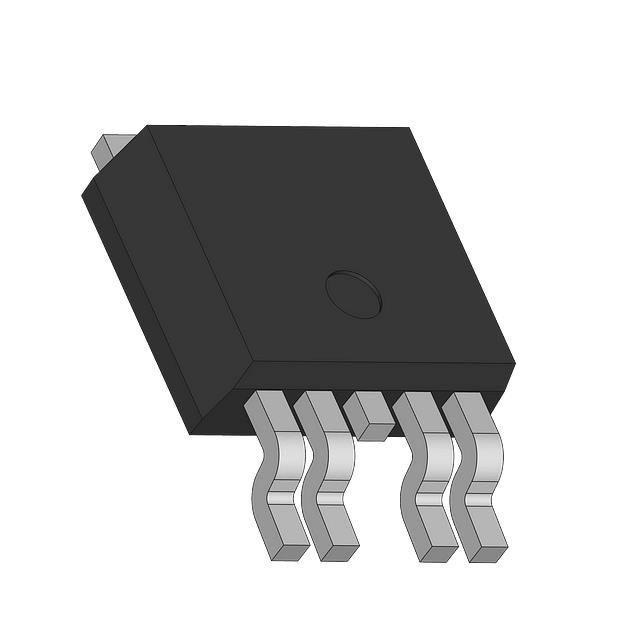

TPS7A6050QKVUQ1
TPS7A60-Q1 300-MA 40-V LOW-DROPOManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA TO-252-5
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 300mA |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 40 µA |
| Voltage - Input (Max) | 40V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-252-5 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Enable, Reset |
| PSRR | 60dB ~ 30dB (100Hz ~ 150kHz) |
| Voltage Dropout (Max) | 0.5V @ 250mA |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
