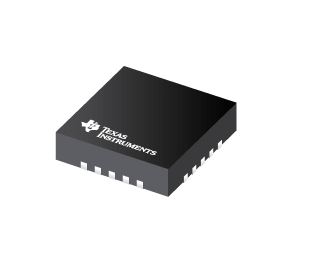

TPS7A5310AQWRTJRQ1
AUTOMOTIVE, 3-A, LOW-VIN 5.6-VRMManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Fixed 1 Output 3A 20-WQFN (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount, Wettable Flank |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1.3 mA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | 20-WQFN (4x4) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1V |
| Control Features | Current Limit, Enable, Soft Start |
| Grade | Automotive |
| PSRR | 70dB ~ 27dB (1kHz ~ 3MHz) |
| Voltage Dropout (Max) | 0.29V @ 3A |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Qualification | AEC-Q100 |
