TPS7A4701RGWR
IC REG LINEAR POS ADJ 1A 20VQFNManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments TPS7A4701RGWR is a positive, adjustable linear voltage regulator with an output current capability of 1A. This device features a low quiescent current of 1mA and a maximum input voltage of 35V, with an output voltage adjustable from 1.4V up to 34V. The dropout voltage is rated at 0.45V at 1A. Protection features include over current, over temperature, and under voltage lockout (UVLO). With a high power supply rejection ratio (PSRR) of 78dB at 1kHz, the TPS7A4701RGWR is suitable for noise-sensitive applications. This component utilizes a 20-VQFN (5x5) exposed pad package, surface-mounted, and is supplied on tape and reel. It finds application in areas such as medical equipment, industrial automation, and telecommunications infrastructure. The operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

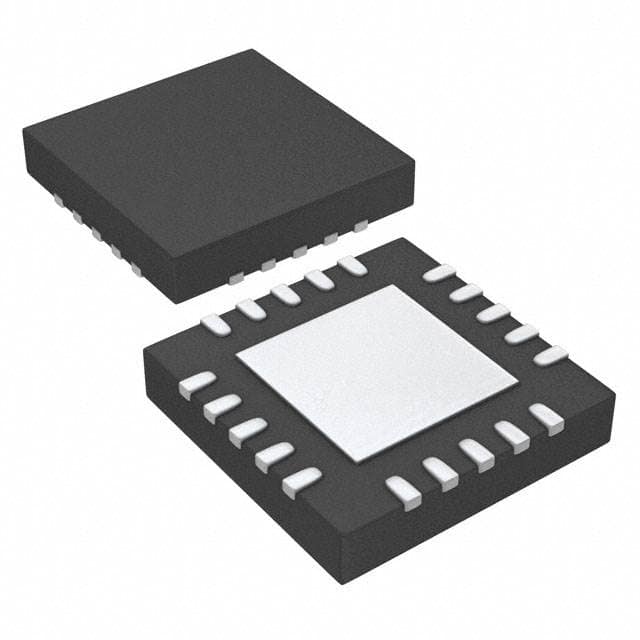

| Package / Case | 20-VQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1 mA |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | 20-VQFN (5x5) |
| Voltage - Output (Max) | 34V |
| Voltage - Output (Min/Fixed) | 1.4V |
| Control Features | Enable |
| PSRR | 78dB (1kHz) |
| Voltage Dropout (Max) | 0.45V @ 1A |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 6.1 mA |
