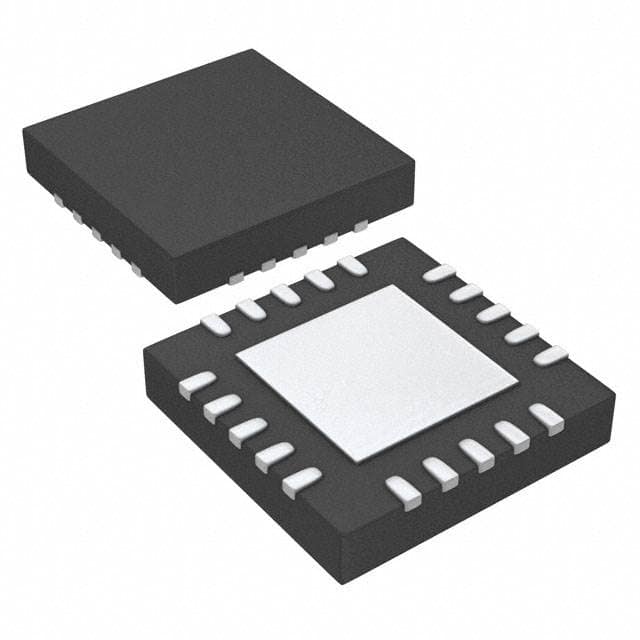

TPS7A4701QRGWRQ1
IC REG LINEAR POS ADJ 1A 20VQFNManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Texas Instruments TPS7A4701QRGWRQ1 is a high-performance, positive adjustable linear voltage regulator designed for demanding applications. This AEC-Q100 qualified component offers exceptional power supply rejection ratio (PSRR) of 78dB at 1kHz, making it suitable for noise-sensitive systems. With an output current capability of 1A and a low dropout voltage of 0.45V at 1A, it ensures efficient power delivery. The device features an adjustable output voltage range from 1.4V up to 34V, with a maximum input voltage rating of 35V. Protection features include over current, over temperature, and under voltage lockout (UVLO). Its 20-VQFN (5x5) package with an exposed pad facilitates efficient thermal management. This regulator is ideal for automotive, industrial, and high-fidelity audio systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VQFN Exposed Pad |
| Output Type | Adjustable/Programmable |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 145°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1 mA |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | 20-VQFN (5x5) |
| Voltage - Output (Max) | 34V |
| Voltage - Output (Min/Fixed) | 1.4V |
| Control Features | Enable |
| Grade | Automotive |
| PSRR | 78dB (1kHz) |
| Voltage Dropout (Max) | 0.45V @ 1A |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 6.1 mA |
| Qualification | AEC-Q100 |
