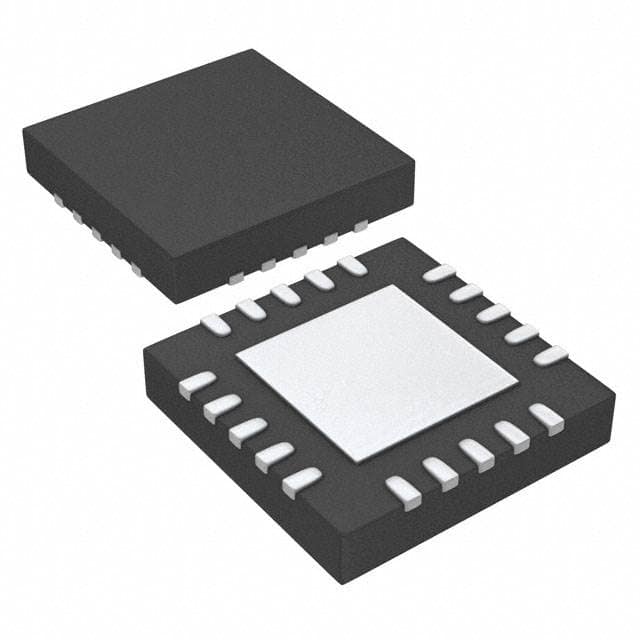

TPS7A4700RGWR
IC REG LINEAR POS ADJ 1A 20VQFNManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 1A 20-VQFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1 mA |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | 20-VQFN (5x5) |
| Voltage - Output (Max) | 20.5V |
| Voltage - Output (Min/Fixed) | 1.4V |
| Control Features | Enable |
| PSRR | 78dB (1kHz) |
| Voltage Dropout (Max) | 0.45V @ 1A |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 6.1 mA |
