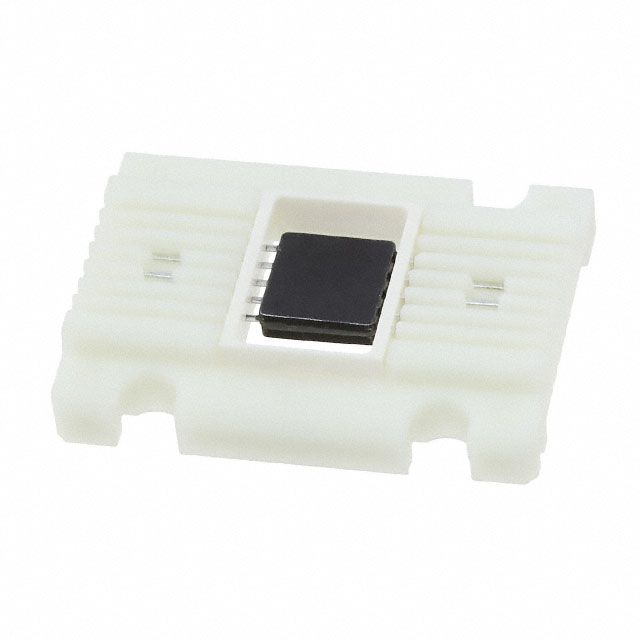

TPS7A4501U/EM
IC REG LIN POS ADJ 750MA 10CFPManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments TPS7A4501U-EM is an adjustable positive linear voltage regulator IC capable of delivering up to 750mA. This device features a low dropout voltage of 0.33V at 750mA and offers a wide input voltage range up to 20V, with a maximum output voltage also at 20V. The quiescent current is 1.5mA, and the supply current is a maximum of 90mA. Protection features include over-current, over-temperature, and reverse polarity. The TPS7A4501U-EM supports an enable pin for control and exhibits a Power Supply Rejection Ratio (PSRR) of 68dB at 120Hz. Supplied in a 10-CFP package for surface mounting, this component is suitable for applications in the industrial and automotive sectors.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-CDFF |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 750mA |
| Operating Temperature | 25°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1.5 mA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | 10-CFP |
| Voltage - Output (Max) | 20V |
| Voltage - Output (Min/Fixed) | 1.21V |
| Control Features | Enable |
| PSRR | 68dB (120Hz) |
| Voltage Dropout (Max) | 0.33V @ 750mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Current - Supply (Max) | 90 mA |
