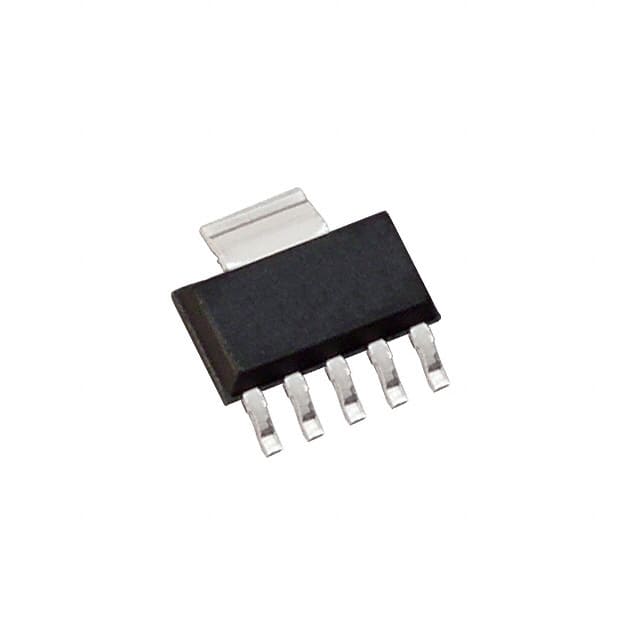

TPS7A4501DCQT
IC REG LIN POS ADJ 1.5A SOT223-6Manufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments TPS7A4501DCQT is a positive, adjustable linear voltage regulator designed for high-performance applications. This component delivers up to 1.5A output current with a low dropout voltage of 0.45V at 1.5A, minimizing power loss. It features an adjustable output voltage range from 1.21V to 20V, accommodating a wide array of system requirements. The device operates with a maximum input voltage of 20V and an input quiescent current of 90mA, with 1.5mA in standby. Protection features include over-current, over-temperature, and reverse polarity protection, ensuring robust operation. The high power supply rejection ratio (PSRR) of 68dB at 120Hz is beneficial for noise-sensitive circuits. This SOT-223-6 packaged component is surface-mountable and suitable for use in industrial, automotive, and telecommunications equipment. The enable pin provides control over the regulator's operation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-223-6 |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1.5A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1.5 mA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-223-6 |
| Voltage - Output (Max) | 20V |
| Voltage - Output (Min/Fixed) | 1.21V |
| Control Features | Enable |
| PSRR | 68dB (120Hz) |
| Voltage Dropout (Max) | 0.45V @ 1.5A |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Current - Supply (Max) | 90 mA |
