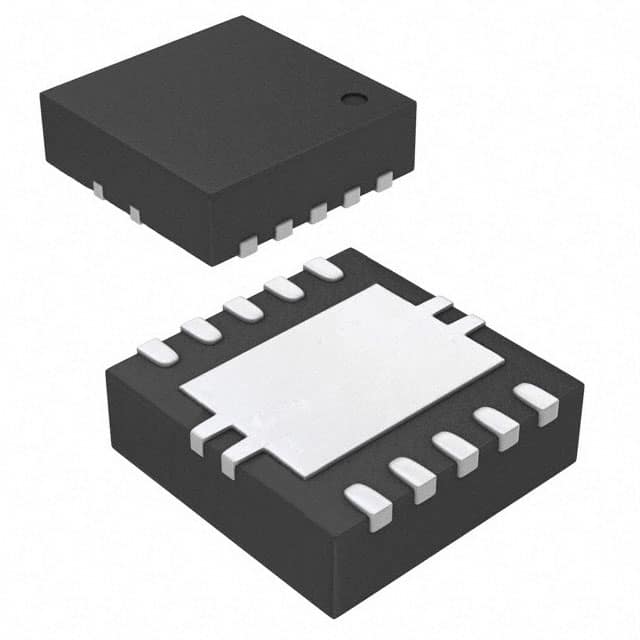

TPS7A3901DSCR
IC REG LINEAR POS/NEG ADJ 10WSONManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive and Negative Adjustable 2 Output 150mA 10-WSON (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Output Configuration | Positive and Negative |
| Current - Quiescent (Iq) | 150 µA |
| Voltage - Input (Max) | ±33V |
| Number of Regulators | 2 |
| Supplier Device Package | 10-WSON (3x3) |
| Voltage - Output (Max) | 30V, -30V |
| Voltage - Output (Min/Fixed) | 1.2V, 0V |
| Control Features | Current Limit, Enable, Soft Start |
| PSRR | 69dB (120Hz) |
| Voltage Dropout (Max) | 0.5V @ 150mA |
| Protection Features | Over Temperature, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 904 µA |
