TPS7A20285PYCKR
300-MA, ULTRA-LOW-NOISE, LOW-IQ,Manufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

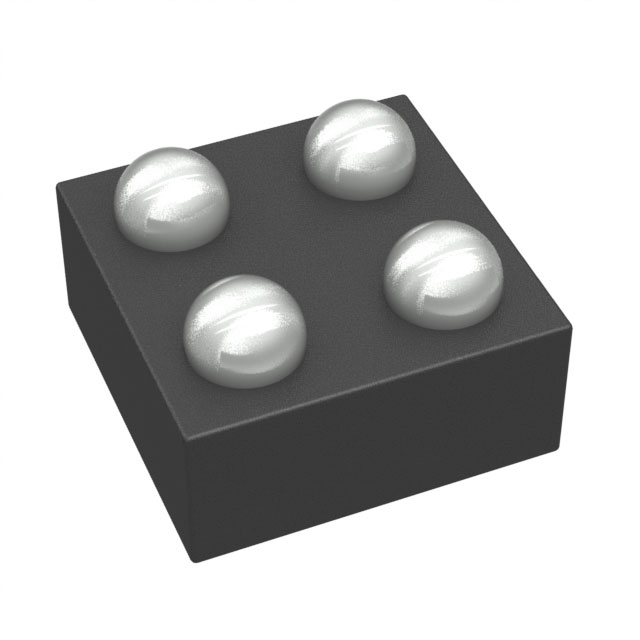

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 4-DSBGA (0.6x0.6)
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFBGA, DSBGA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 300mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 15 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | 4-DSBGA (0.6x0.6) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.85V |
| Control Features | Enable, Soft Start |
| PSRR | 65dB ~ 40dB (100Hz ~ 1MHz) |
| Voltage Dropout (Max) | 0.14V @ 300mA |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
