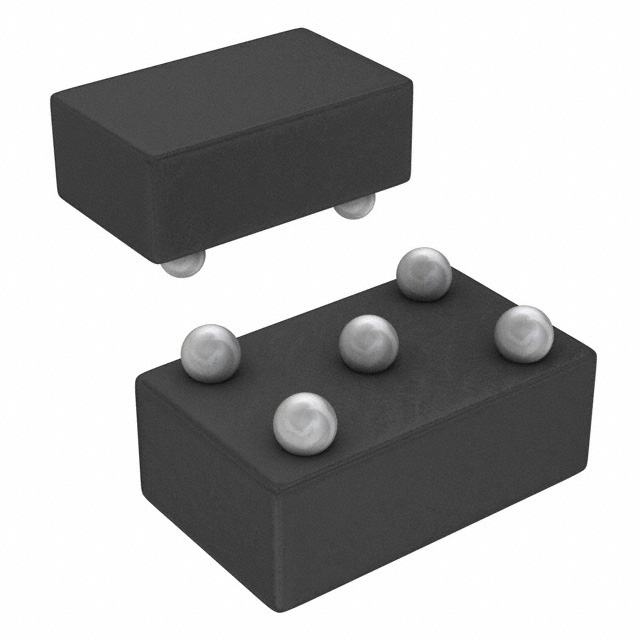

TPS79330YZQT
IC REG LINEAR 3V 200MA 5DSBGAManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments TPS79330 voltage regulator, a fixed 3V output device, delivers 200mA with a low dropout voltage of 0.2V at 200mA. This linear regulator features a quiescent current of 220µA and includes an Enable pin for control. Protection mechanisms include over current, over temperature, reverse polarity, and under voltage lockout (UVLO). The device exhibits excellent power supply ripple rejection (PSRR) ranging from 70dB at 100Hz to 43dB at 100kHz. Packaged in a 5-DSBGA (5-UFBGA), this component is suitable for surface mounting and is supplied on tape and reel. Its performance characteristics make it applicable in various consumer electronics, communications infrastructure, and industrial automation applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-UFBGA, DSBGA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 200mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 220 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 5-DSBGA |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3V |
| Control Features | Enable |
| PSRR | 70dB ~ 43dB (100Hz ~ 100kHz) |
| Voltage Dropout (Max) | 0.2V @ 200mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
