TPS75233QPWPRQ1
IC REG LINEAR 3.3V 2A 20HTSSOPManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments TPS75233QPWPRQ1 is a positive fixed output linear voltage regulator. This automotive-grade device, qualified to AEC-Q100 standards, delivers a stable 3.3V output with a maximum current capability of 2A. Featuring a low dropout voltage of 0.4V at 2A, it is designed for efficient power delivery. The 20-HTSSOP package facilitates surface mount integration. Operational parameters include an input voltage range up to 5.5V and an operating temperature range of -40°C to 125°C. Control features include Enable, Power Good, and Reset Output signals, while protection is provided against over current, over temperature, and reverse polarity conditions. The quiescent current is rated at 125 µA. This component is commonly utilized in automotive applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

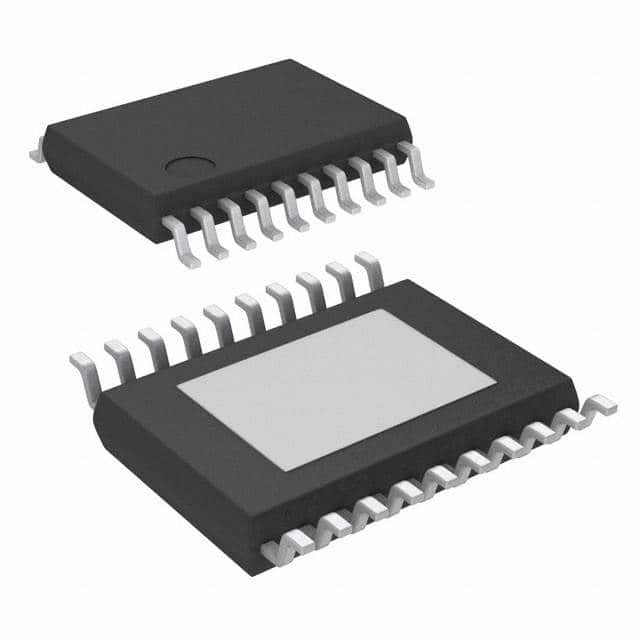

| Package / Case | 20-PowerTSSOP (0.173"", 4.40mm Width) |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 125 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 20-HTSSOP |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | Enable, Power Good, Reset Output |
| Grade | Automotive |
| PSRR | 60dB (100Hz) |
| Voltage Dropout (Max) | 0.4V @ 2A |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Qualification | AEC-Q100 |
