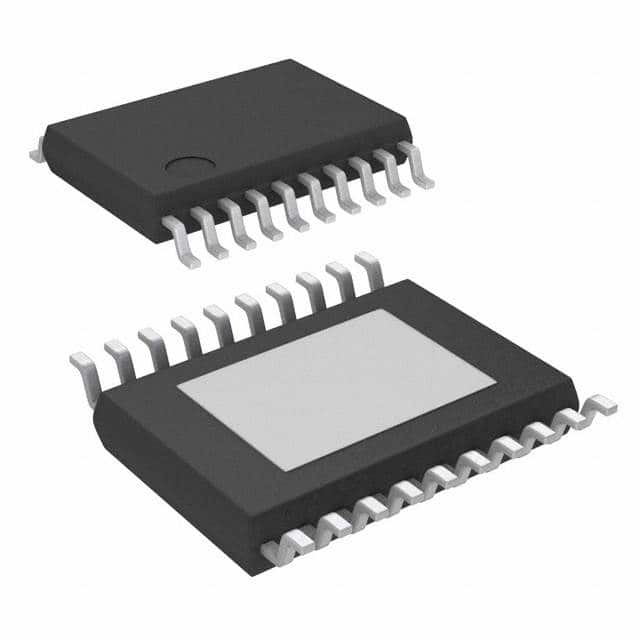

TPS75201QPWPRQ1
IC REG LIN POS ADJ 2A 20HTSSOPManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments TPS75201QPWPRQ1 is a linear voltage regulator designed for high-performance applications. This adjustable positive output regulator provides a stable output voltage from 1.5V up to 5V, with a maximum output current capability of 2A. Featuring a low dropout voltage of 0.4V at 2A, it optimizes power efficiency in demanding scenarios. The device includes essential control features such as Enable, Power Good, and Reset Output, facilitating system monitoring and management. Protection mechanisms include over current, over temperature, and reverse polarity, ensuring robust operation. With a quiescent current of 125 µA, it is suitable for power-sensitive designs. Qualified to AEC-Q100 standards and operating within an ambient temperature range of -40°C to 125°C, this component is well-suited for automotive applications. Packaged in a 20-HTSSOP on tape and reel, the TPS75201QPWPRQ1 offers a 60dB PSRR at 100Hz.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-PowerTSSOP (0.173"", 4.40mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 2A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 125 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 20-HTSSOP |
| Voltage - Output (Max) | 5V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Control Features | Enable, Power Good, Reset Output |
| Grade | Automotive |
| PSRR | 60dB (100Hz) |
| Voltage Dropout (Max) | 0.4V @ 2A |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Qualification | AEC-Q100 |
