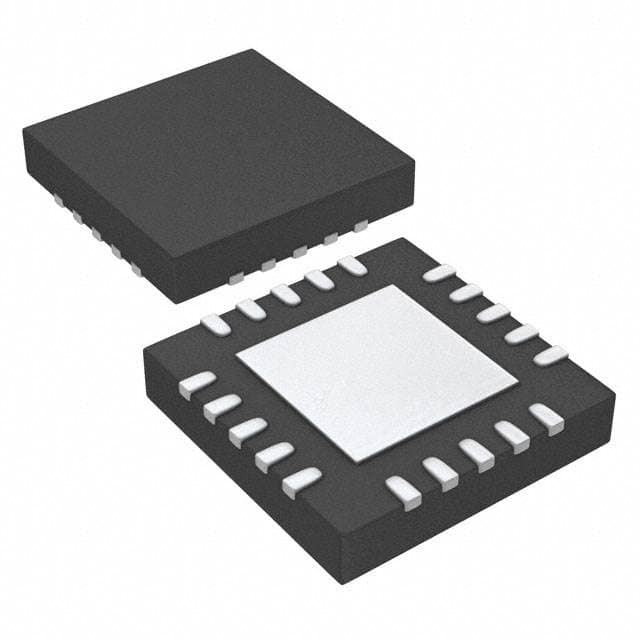

TPS74201RGRR
IC REG LIN POS ADJ 1.5A 20VQFNManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments TPS74201RGRR is a positive, adjustable linear voltage regulator with a 1.5A output capability. This device features a low dropout voltage of 0.12V at 1.5A, an input voltage range up to 5.5V, and an output voltage adjustable from 0.8V to 3.6V. Control features include Enable, Power Good, and Soft Start functionality. Protection mechanisms are incorporated for over current, over temperature, short circuit, and under voltage lockout (UVLO). The quiescent current is rated at 115 µA, with a maximum supply current of 1.5 mA. The power supply rejection ratio (PSRR) ranges from 73dB at 1kHz to 42dB at 300kHz. Encased in a 20-VQFN (3.5x3.5) package with an exposed pad, this component is suitable for surface mounting and is supplied on a tape and reel. It finds application in areas requiring efficient power management, such as automotive and industrial systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1.5A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 115 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 20-VQFN (3.5x3.5) |
| Voltage - Output (Max) | 3.6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Control Features | Enable, Power Good, Soft Start |
| PSRR | 73dB ~ 42dB (1kHz ~ 300kHz) |
| Voltage Dropout (Max) | 0.12V @ 1.5A |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 1.5 mA |
