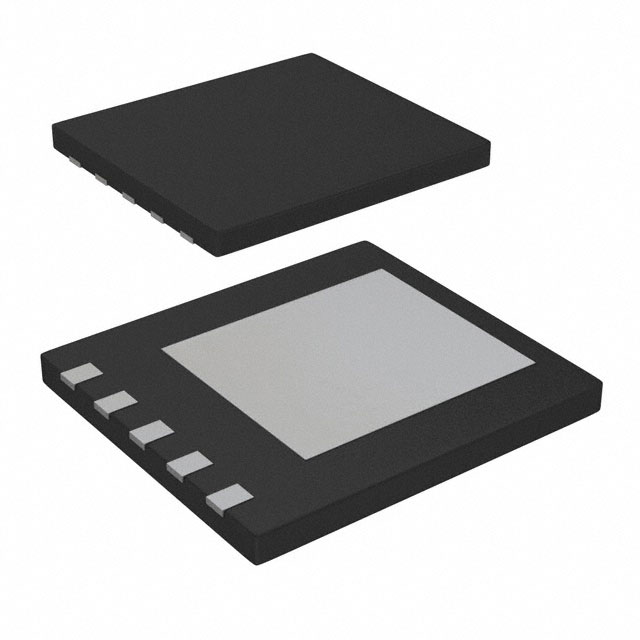

TPS74001DPTR

IC REG LINEAR POS ADJ 1.5A 5VSON

Manufacturer: Texas Instruments

Categories: Linear, Low Drop Out (LDO) Regulators

Quality Control: Learn More

Texas Instruments TPS74001DPTR is a high-performance, positive adjustable linear voltage regulator designed for demanding applications. With a maximum input voltage of 6V and an output current capability of 1.5A, this component is suitable for use in automotive, industrial, and communication infrastructure. It features an adjustable output voltage range from 0.9V to 3.6V, with a low dropout voltage of 0.3V at 1.5A to maximize efficiency. Protection mechanisms include over-current, over-temperature, and under-voltage lockout (UVLO). The device operates within a temperature range of -40°C to 125°C and is supplied in a 5-VSON (10x11) package on tape and reel. The enable pin provides additional control over the regulator's operation.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
PackagingTape & Reel (TR)
Package / Case5-VSFN Exposed Pad
Output TypeAdjustable
Mounting TypeSurface Mount
Current - Output1.5A
Operating Temperature-40°C ~ 125°C
Output ConfigurationPositive
Current - Quiescent (Iq)3 mA
Voltage - Input (Max)6V
Number of Regulators1
Supplier Device Package5-VSON (10x11)
Voltage - Output (Max)3.6V
Voltage - Output (Min/Fixed)0.9V
Control FeaturesEnable
PSRR-
Voltage Dropout (Max)0.3V @ 1.5A
Protection FeaturesOver Current, Over Temperature, Under Voltage Lockout (UVLO)
