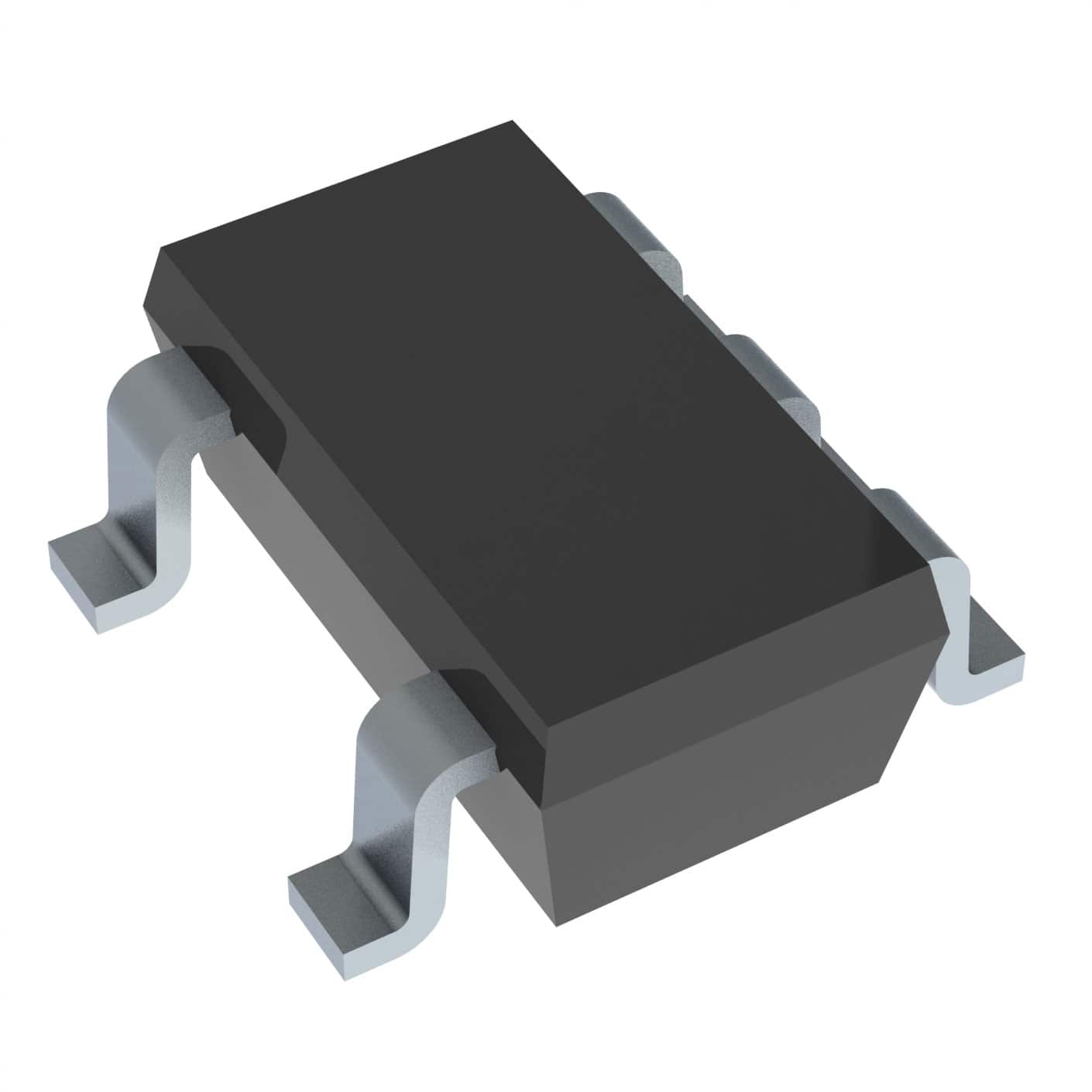

TPS73632DBVT
IC REG LINEAR 3.2V 400MA SOT23-5Manufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments TPS73632DBVT is a fixed output voltage linear regulator designed for efficient power management. This positive, low dropout (LDO) regulator supplies a stable 3.2V output with a maximum current capability of 400mA. Featuring a low quiescent current of 550 µA, it is suitable for battery-powered applications. The device operates with an input voltage range up to 5.5V and offers a low dropout voltage of 0.2V at 400mA, minimizing power dissipation. Integrated protection features include over current, over temperature, and reverse polarity protection for enhanced reliability. The SOT-23-5 package facilitates surface mounting, and the component is supplied on tape and reel. It finds application in areas such as consumer electronics, industrial automation, and portable devices. The device offers a Power Supply Rejection Ratio (PSRR) of 58dB to 37dB across a frequency range of 100Hz to 10kHz.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 400mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 550 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-23-5 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.2V |
| Control Features | Enable |
| PSRR | 58dB ~ 37dB (100Hz ~ 10kHz) |
| Voltage Dropout (Max) | 0.2V @ 400mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Current - Supply (Max) | 1 mA |
