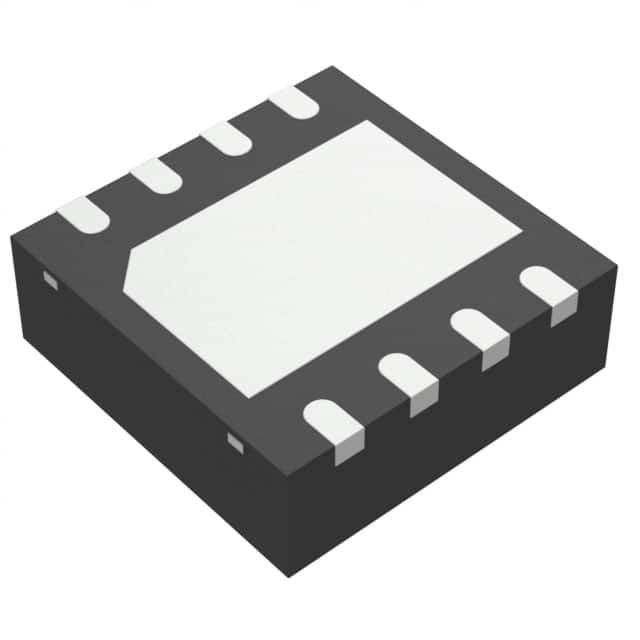

TPS73615DRBTG4
IC REG LINEAR 1.5V 400MA 8SONManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments TPS73615DRBTG4 is a positive, fixed output linear voltage regulator designed for efficient power management. This component offers a stable 1.5V output with a maximum output current of 400mA. Key performance characteristics include a low dropout voltage of 0.2V at 400mA and a quiescent current of 550 µA. The device features an Enable pin for power sequencing and robust protection mechanisms including over current, over temperature, and reverse polarity protection. Its Power Supply Rejection Ratio (PSRR) ranges from 58dB at 100Hz to 37dB at 10kHz, ensuring clean power delivery. The TPS73615DRBTG4 is housed in an 8-SON (3x3) surface mount package and is supplied on tape and reel. This regulator is suitable for applications in automotive, industrial, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 400mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 550 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-SON (3x3) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.5V |
| Control Features | Enable |
| PSRR | 58dB ~ 37dB (100Hz ~ 10kHz) |
| Voltage Dropout (Max) | 0.2V @ 400mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Current - Supply (Max) | 1 mA |
