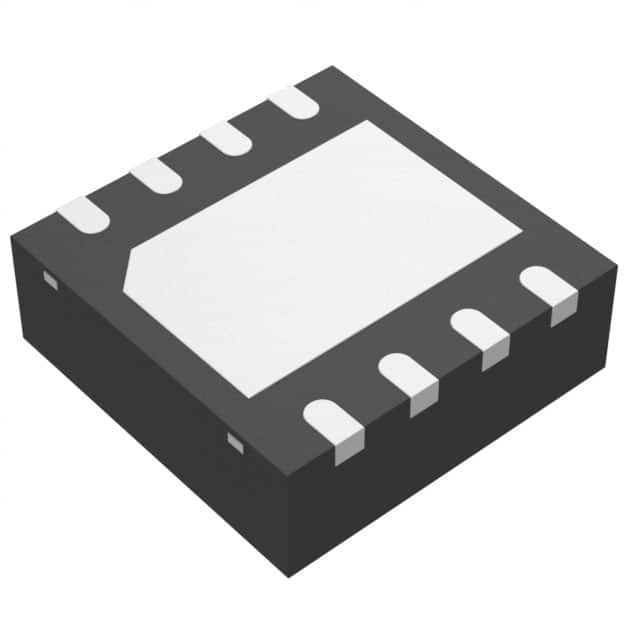

TPS736125DRBT
IC REG LINEAR 1.25V 400MA 8SONManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments TPS736125DRBT is a positive fixed linear voltage regulator designed for efficient power management. This component offers a stable 1.25V output with a maximum output current of 400mA. It features a low dropout voltage of 0.2V at 400mA, contributing to enhanced power efficiency in battery-powered applications. The device includes an Enable pin for control and robust protection features such as over current, over temperature, and reverse polarity protection for reliable operation. With a quiescent current of 550 µA and a maximum input voltage of 5.5V, it is suitable for demanding applications in the industrial and consumer electronics sectors. The TPS736125DRBT is supplied in an 8-SON (3x3) package, surface-mount compatible, and delivered on tape and reel (TR). Its Power Supply Rejection Ratio (PSRR) ranges from 58dB to 37dB across a frequency range of 100Hz to 10kHz.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 400mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 550 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-SON (3x3) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.25V |
| Control Features | Enable |
| PSRR | 58dB ~ 37dB (100Hz ~ 10kHz) |
| Voltage Dropout (Max) | 0.2V @ 400mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Current - Supply (Max) | 1 mA |
