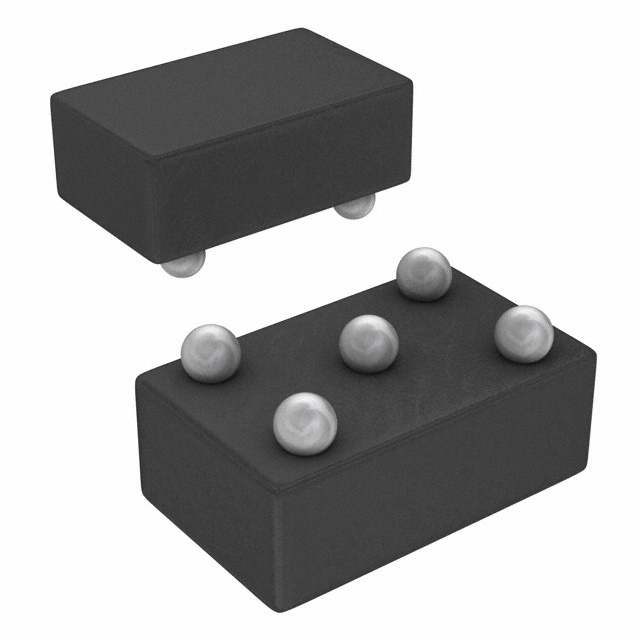

TPS73025YZQT
IC REG LINEAR 2.5V 200MA 5DSBGAManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Texas Instruments TPS73025YZQT is a linear voltage regulator with a fixed 2.5V output and a maximum output current of 200mA. This device features a low quiescent current of 250 µA and a low dropout voltage of 0.21V at 200mA, ensuring efficient power delivery. Protection features include over current, over temperature, reverse polarity, and under voltage lockout (UVLO). The regulator offers a high power supply rejection ratio (PSRR) of 68dB at 100Hz. It is supplied in a compact 5-DSBGA package suitable for surface mounting. Applications for this component are found in portable electronics, automotive, and industrial sectors. The operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-UFBGA, DSBGA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 200mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 250 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 5-DSBGA |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.5V |
| Control Features | Enable |
| PSRR | 68dB (100Hz) |
| Voltage Dropout (Max) | 0.21V @ 200mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
