TPS72525KTTT
IC REG LIN 2.5V 1A DDPAK/TO263-5Manufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

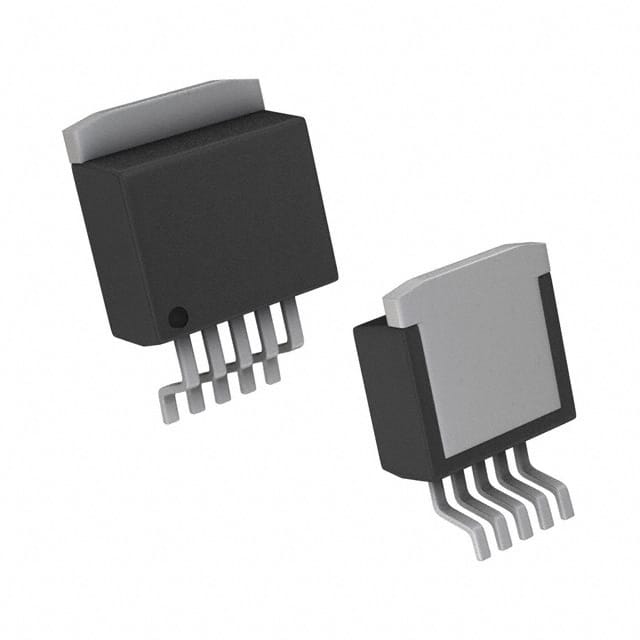

Texas Instruments TPS72525KTTT is a positive fixed output linear voltage regulator. This device delivers a stable 2.5V output with a maximum output current of 1A. Designed for surface mount applications, it utilizes the TO-263 (DDPAK-5) package. The TPS72525KTTT features an enable pin and a reset function, alongside robust protection mechanisms including over current, over temperature, reverse polarity, and under voltage lockout (UVLO). With a maximum input voltage of 6V and a quiescent current of 225 µA, this regulator exhibits a low dropout voltage of 0.28V at 1A and a power supply rejection ratio (PSRR) of 60dB at 1kHz. It operates across a wide temperature range of -40°C to 125°C. This component is suitable for use in consumer electronics, industrial control systems, and automotive applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 225 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-263 (DDPAK-5) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.5V |
| Control Features | Enable, Reset |
| PSRR | 60dB (1kHz) |
| Voltage Dropout (Max) | 0.28V @ 1A |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 325 µA |
