TPS72515KTTT

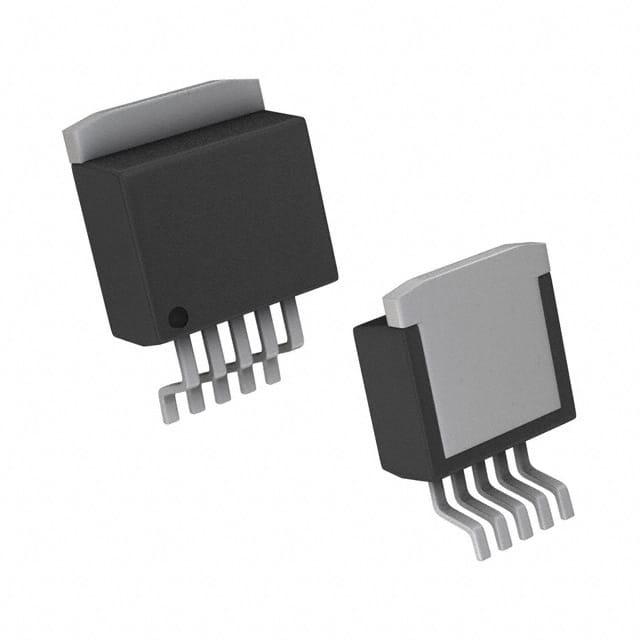

IC REG LIN 1.5V 1A DDPAK/TO263-5Manufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Texas Instruments TPS72515KTTT is a positive fixed output linear voltage regulator IC designed for high-performance applications. This device features a 1.5V output voltage and a maximum output current of 1A, making it suitable for power supply regulation in various industrial and consumer electronics. The TO-263 (DDPAK-5) package facilitates surface mounting, and it operates within a temperature range of -40°C to 125°C. Key control features include an Enable and Reset pin, while comprehensive protection mechanisms encompass over current, over temperature, reverse polarity, and under voltage lockout (UVLO). The regulator boasts a low quiescent current of 225 µA and a dropout voltage of 0.32V at 1A. Its Power Supply Rejection Ratio (PSRR) is rated at 60dB at 1kHz.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 225 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-263 (DDPAK-5) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.5V |
| Control Features | Enable, Reset |
| PSRR | 60dB (1kHz) |
| Voltage Dropout (Max) | 0.32V @ 1A |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 325 µA |
