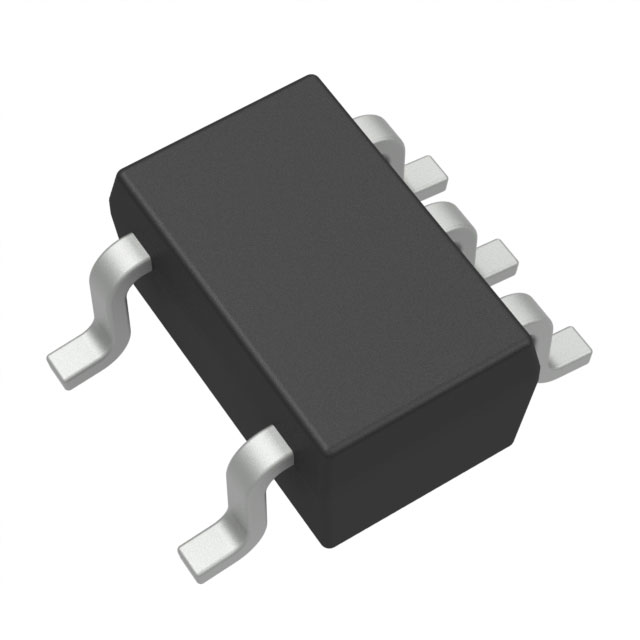

TPS71701DCKR
IC REG LIN POS ADJ 150MA SC-70-5Manufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 150mA SC-70-5
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 80 µA |
| Voltage - Input (Max) | 6.5V |
| Number of Regulators | 1 |
| Supplier Device Package | SC-70-5 |
| Voltage - Output (Max) | 6.2V |
| Voltage - Output (Min/Fixed) | 0.9V |
| Control Features | Enable |
| PSRR | 70dB ~ 45dB (100Hz ~ 1MHz) |
| Voltage Dropout (Max) | 0.3V @ 150mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 100 µA |
