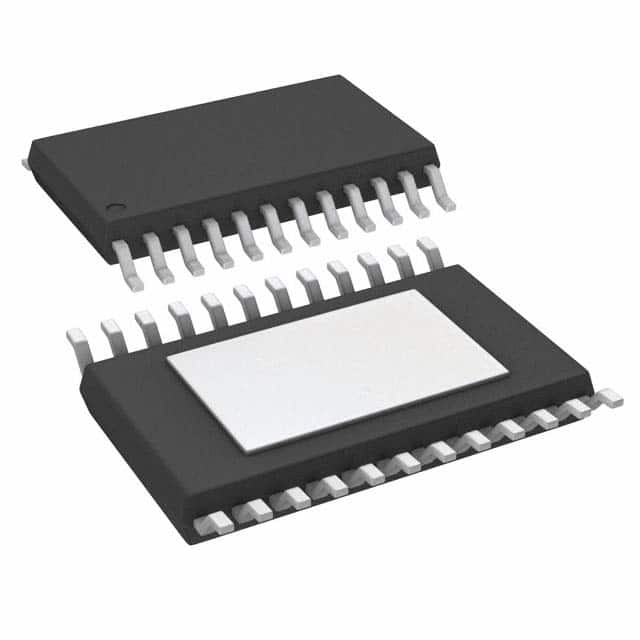

TPS70402PWPR
IC REG LIN POS ADJ 24HTSSOPManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 2 Output 1A, 2A 24-HTSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-PowerTSSOP (0.173"", 4.40mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1A, 2A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 250 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 2 |
| Supplier Device Package | 24-HTSSOP |
| Voltage - Output (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.22V |
| Control Features | Enable, Power Good, Reset, Sequencing |
| PSRR | 65dB (1kHz), 60dB (1kHz) |
| Voltage Dropout (Max) | 0.25V @ 1A, - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
