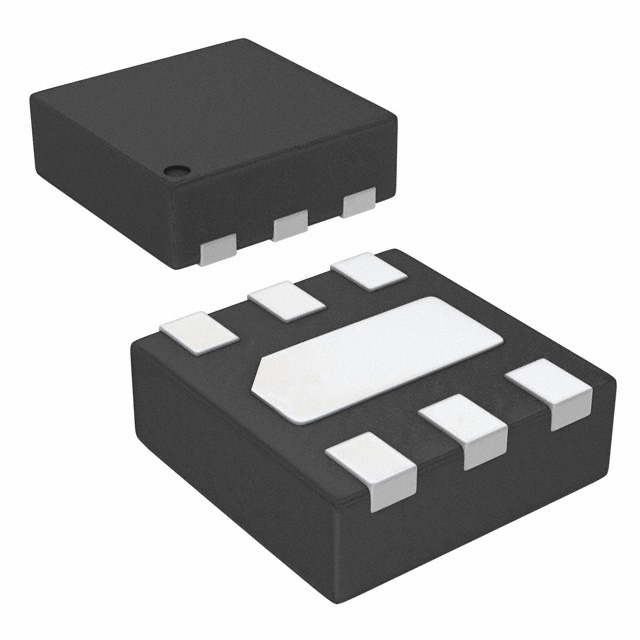

TLV716120275PDPQT
IC REG LIN 1.2/2.75V 6X2SONManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Fixed 2 Output 150mA 6-X2SON (1.2x1.2)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 75 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 2 |
| Supplier Device Package | 6-X2SON (1.2x1.2) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.2V, 2.75V |
| Control Features | Enable |
| PSRR | 80dB ~ 46dB (100Hz ~ 10kHz) |
| Voltage Dropout (Max) | 1V @ 150mA, 0.45V @ 150mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) |
