TL750L05CKTER
IC REG LIN 5V 150MA 3POWERFLEXManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Texas Instruments TL750L05CKTER is a positive fixed output linear voltage regulator, supplying 5V at up to 150mA. This device operates with a maximum input voltage of 26V and features a quiescent current of 2mA. The TL750L05CKTER offers robust protection including over current, over temperature, over voltage, and reverse polarity. It exhibits a Power Supply Rejection Ratio (PSRR) of 65dB at 120Hz and a dropout voltage of 0.6V at 150mA. Packaged in a 3-PowerFLEX™ (TO-252-4, DPAK) for surface mounting, this regulator is suitable for applications in automotive, industrial, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

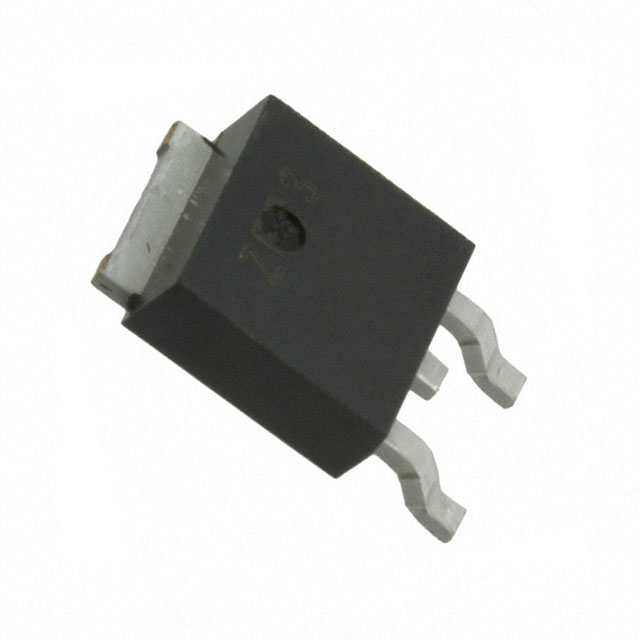

| Package / Case | TO-252-4, DPAK (3 Leads + Tab) |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 2 mA |
| Voltage - Input (Max) | 26V |
| Number of Regulators | 1 |
| Supplier Device Package | 3-PowerFLEX™ |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | - |
| PSRR | 65dB (120Hz) |
| Voltage Dropout (Max) | 0.6V @ 150mA |
| Protection Features | Over Current, Over Temperature, Over Voltage, Reverse Polarity |
| Current - Supply (Max) | 12 mA |
