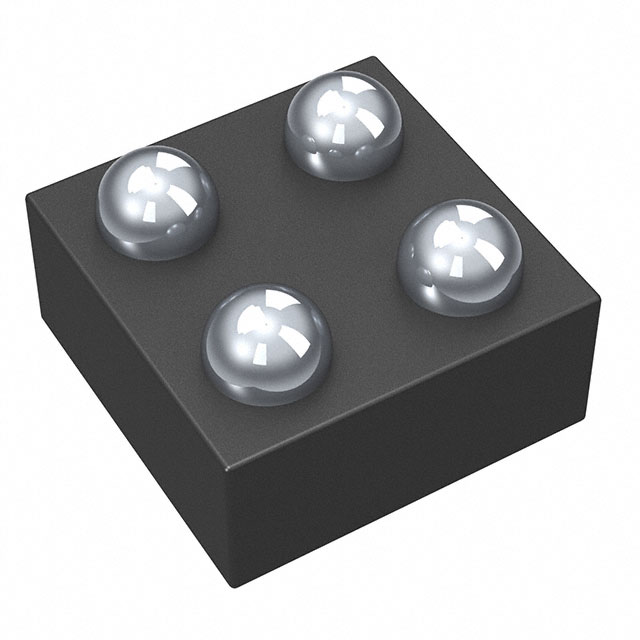

LP5907YKGR-2.0
IC REG LINEAR 2V 250MA 4DSBGAManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments LP5907YKGR-2-0 is a fixed 2V linear voltage regulator, delivering 250mA output current. This AEC-Q100 qualified component features a low quiescent current of 25µA and a low dropout voltage of 0.2V at 250mA. The device includes overcurrent, overtemperature, and short-circuit protection. Its high Power Supply Rejection Ratio (PSRR) of up to 90dB at 100Hz makes it suitable for noise-sensitive applications in automotive and industrial sectors. The regulator operates within an ambient temperature range of -40°C to 125°C (TJ). Supplied in a compact 4-DSBGA (0.65x0.65) package on tape and reel, it is designed for surface mount applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFBGA, DSBGA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 250mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 25 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 4-DSBGA (0.65x0.65) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2V |
| Control Features | Enable |
| Grade | Automotive |
| PSRR | 90dB ~ 60dB (100Hz ~ 100kHz) |
| Voltage Dropout (Max) | 0.2V @ 250mA |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Current - Supply (Max) | 425 µA |
| Qualification | AEC-Q100 |
