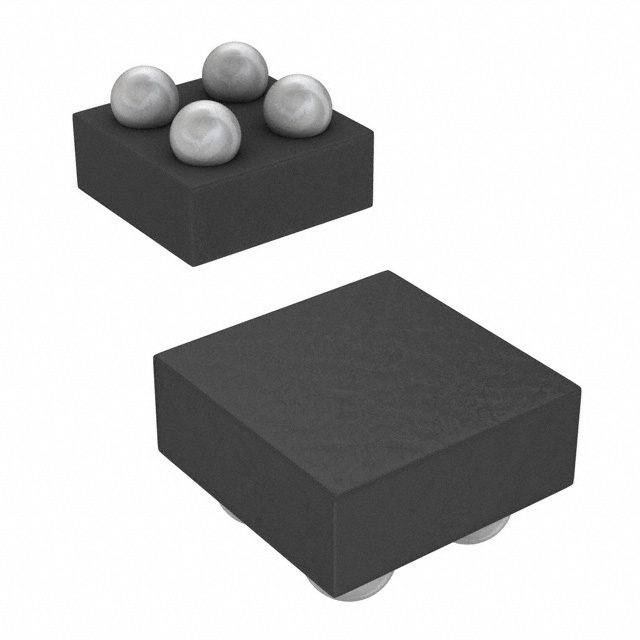

LP5907A29YKMR
IC REG LINEAR 2.9V 250MA 4DSBGAManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments LP5907A29YKMR is a fixed 2.9V positive linear voltage regulator. This device offers a low quiescent current of 25 µA and a maximum output current of 250mA, with a dropout voltage of 0.2V at 250mA. It features an enable pin for power sequencing and protection against short circuits. The regulator provides excellent power supply rejection ratio (PSRR) across a frequency range of 100Hz to 100kHz, with values from 90dB down to 60dB. Designed for surface mounting, it is supplied in a compact 4-DSBGA (0.65x0.65) package, delivered on tape and reel. This component is suitable for applications in portable electronics and automotive systems. The input voltage range is up to 5.5V, and it operates within an ambient temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFBGA, DSBGA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 250mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 25 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 4-DSBGA (0.65x0.65) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.9V |
| Control Features | Enable |
| PSRR | 90dB ~ 60dB (100Hz ~ 100kHz) |
| Voltage Dropout (Max) | 0.2V @ 250mA |
| Protection Features | Short Circuit |
| Current - Supply (Max) | 425 µA |
