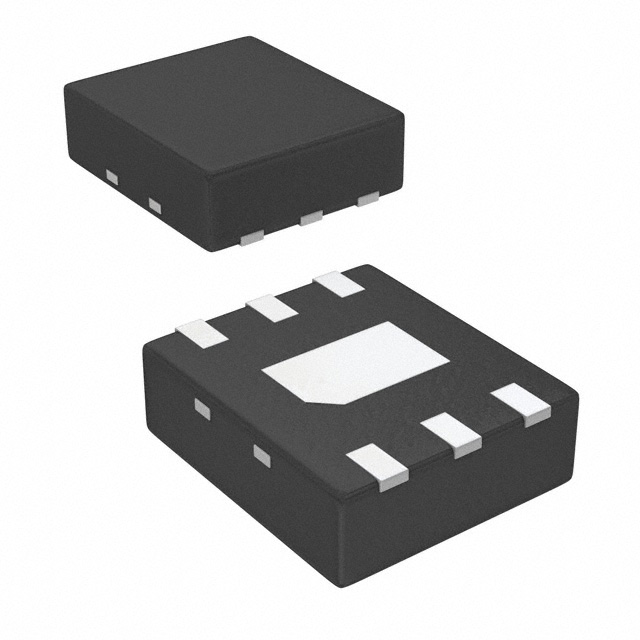

LP5900SDX-2.2/NOPB
IC REG LINEAR 2.2V 150MA 6WSONManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments LP5900SDX-2-2-NOPB is a fixed 2.2V positive linear voltage regulator designed for high-performance applications. This LDO regulator delivers a stable 150mA output current with a low dropout voltage of 0.15V at 150mA. Featuring an enable pin for power sequencing and robust protection against over-temperature and short circuits, it operates effectively within a -40°C to 85°C temperature range. The power supply rejection ratio (PSRR) is significant, ranging from 85dB at 100Hz down to 40dB at 100kHz, ensuring clean power delivery. Packaged in a compact 6-WSON (2.2x2.5) surface-mount configuration, this component is suitable for use in portable electronics, automotive systems, and industrial control applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 50 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-WSON (2.2x2.5) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.2V |
| Control Features | Enable |
| PSRR | 85dB ~ 40dB (100Hz ~ 100kHz) |
| Voltage Dropout (Max) | 0.15V @ 150mA |
| Protection Features | Over Temperature, Short Circuit |
| Current - Supply (Max) | 230 µA |
