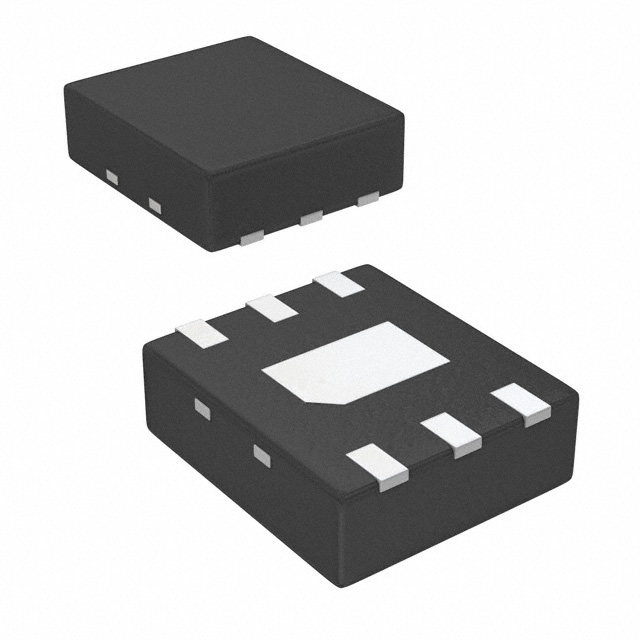

LP5900SDX-1.5/NOPB
IC REG LINEAR 1.5V 150MA 6WSONManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments LP5900SDX-1-5-NOPB is a positive fixed output linear voltage regulator IC. This component provides a stable 1.5V output with a maximum output current capability of 150mA. Designed for efficient operation, it features a low quiescent current of 50 µA and a maximum input voltage of 5.5V. The voltage dropout is minimized to 0.15V at 150mA, enhancing power efficiency. Protection features include over-temperature and short-circuit capabilities. The device offers excellent power supply rejection ratio (PSRR) performance, ranging from 85dB down to 40dB across a frequency spectrum of 100Hz to 100kHz. Its 6-WSON (2.2x2.5) package with exposed pad is suitable for surface mount applications. This regulator is commonly utilized in portable electronics, automotive systems, and power management circuits where stable and efficient voltage regulation is critical. The component is supplied in a tape and reel package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 50 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-WSON (2.2x2.5) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.5V |
| Control Features | Enable |
| PSRR | 85dB ~ 40dB (100Hz ~ 100kHz) |
| Voltage Dropout (Max) | 0.15V @ 150mA |
| Protection Features | Over Temperature, Short Circuit |
| Current - Supply (Max) | 230 µA |
