LP3986TLX-2828/NOPB
IC REG LINEAR 2.8V 150MA 8DSBGAManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments LP3986TLX-2828-NOPB is a dual-output, 2.8V fixed linear voltage regulator. With a 150mA output current capability per channel and a low dropout voltage of 0.1V at 150mA, this component is suitable for power-sensitive applications. The device features enable control for each output and includes over current, over temperature, and short circuit protection. Its low quiescent current of 130 µA and a maximum supply current of 320 µA contribute to efficiency. The LP3986TLX-2828-NOPB operates over a temperature range of -40°C to 125°C and is housed in an 8-DSBGA (1.56x1.56) package, ideal for space-constrained designs. This regulator finds application in portable electronics, wireless communication systems, and battery-powered devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

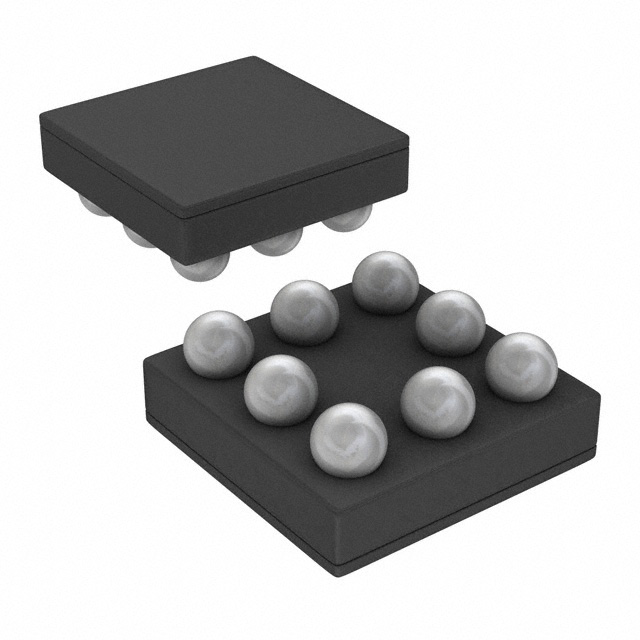

| Package / Case | 8-WFBGA, DSBGA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 130 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 2 |
| Supplier Device Package | 8-DSBGA (1.56x1.56) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.8V |
| Control Features | Enable |
| PSRR | 60dB ~ 50dB (1kHz ~ 10kHz) |
| Voltage Dropout (Max) | 0.1V @ 150mA |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Current - Supply (Max) | 320 µA |
