LP3986BL-2528
IC REG LIN 2.5V/2.8V 150MA 8USMDManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

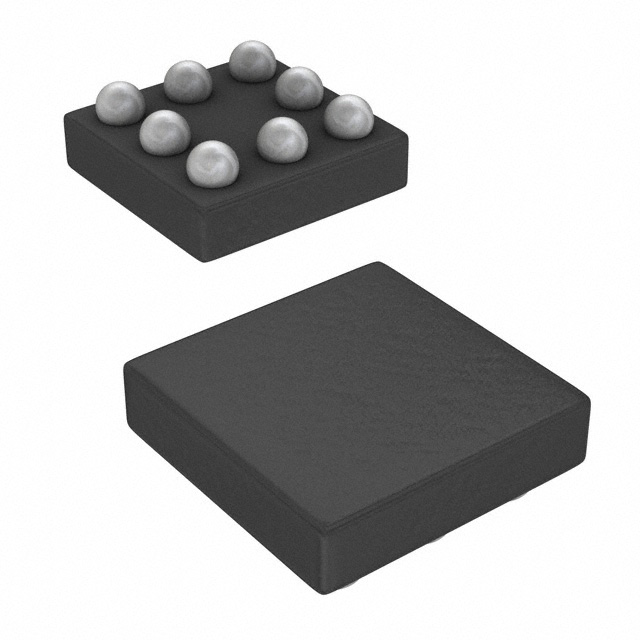

Texas Instruments LP3986BL-2528 is a dual-output, low-dropout linear voltage regulator. This component features fixed outputs of 2.5V and 2.8V, each capable of delivering up to 150mA. Designed for surface-mount applications, it is supplied in an 8-µSMD package (1.57x1.57) on tape and reel. Key protection features include over current, over temperature, and short circuit protection. The device exhibits a typical quiescent current of 130 µA and an input voltage range up to 6V. With a low dropout voltage of 0.1V at 150mA, it is suitable for power-sensitive designs. The regulator offers good power supply rejection ratio (PSRR) performance, ranging from 60dB to 50dB across the 1kHz to 10kHz frequency band. This component is commonly utilized in portable electronics, battery-powered devices, and automotive applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TFBGA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 130 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 2 |
| Supplier Device Package | 8-µSMD (1.57x1.57) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.5V, 2.8V |
| Control Features | Enable |
| PSRR | 60dB ~ 50dB (1kHz ~ 10kHz) |
| Voltage Dropout (Max) | 0.1V @ 150mA |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Current - Supply (Max) | 320 µA |
