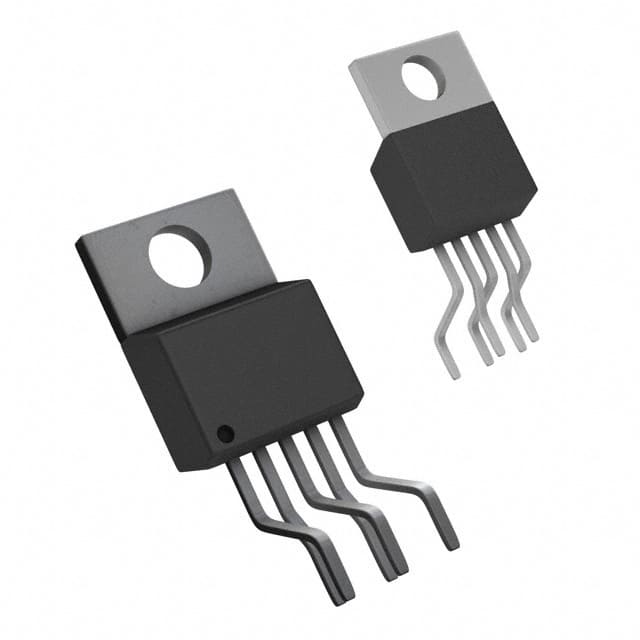

LP3966ET-ADJ
IC REG LINEAR POS ADJ 3A TO220-5Manufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments LP3966ET-ADJ is a positive adjustable linear voltage regulator with a 3A output capability. This TO-220-5 packaged device features over-current, over-temperature, and short-circuit protection. The adjustable output voltage ranges from a minimum of 1.216V up to a maximum of 5.1V, drawing a maximum quiescent current of 9 mA. With a maximum input voltage of 7V, it offers a dropout voltage of 1.2V at its full 3A output. The enable control feature enhances power management. This component is suitable for applications in automotive, industrial, and consumer electronics requiring robust voltage regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-220-5 Formed Leads |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 9 mA |
| Voltage - Input (Max) | 7V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-5 |
| Voltage - Output (Max) | 5.1V |
| Voltage - Output (Min/Fixed) | 1.216V |
| Control Features | Enable |
| PSRR | - |
| Voltage Dropout (Max) | 1.2V @ 3A |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Current - Supply (Max) | 15 mA |
