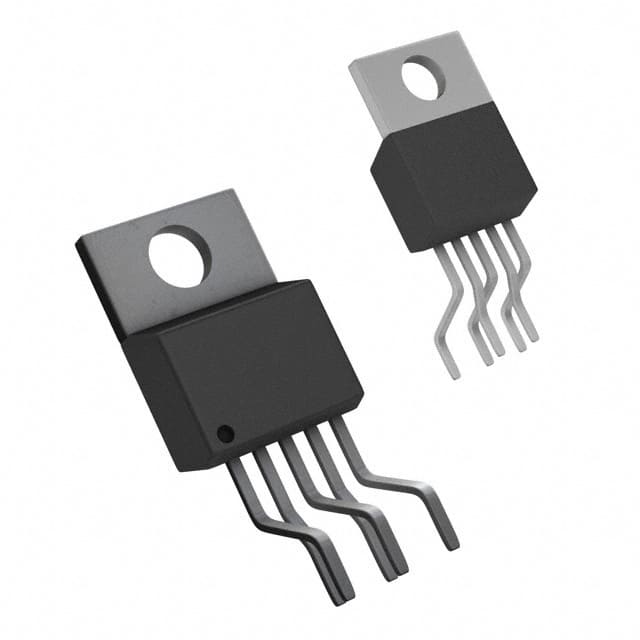

LP3965ET-ADJ
IC REG LIN POS ADJ 1.5A TO220-5Manufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments LP3965ET-ADJ is a linear voltage regulator designed for applications requiring stable positive output voltage. This adjustable output regulator delivers up to 1.5A with a low dropout voltage of 0.55V at 1.5A. It features over-current, over-temperature, and short-circuit protection for enhanced device reliability. The LP3965ET-ADJ offers a wide input voltage range up to 7V and an output voltage adjustable from 1.216V to 5.1V. With a quiescent current of 9mA and a typical power supply rejection ratio (PSRR) of 60dB at 120Hz, it is suitable for power-sensitive designs. The device includes an enable pin for power sequencing and control. Housed in a TO-220-5 package, this component is commonly utilized in telecommunications, automotive, and industrial systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 36 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-5 Formed Leads |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 1.5A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 9 mA |
| Voltage - Input (Max) | 7V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-5 |
| Voltage - Output (Max) | 5.1V |
| Voltage - Output (Min/Fixed) | 1.216V |
| Control Features | Enable |
| PSRR | 60dB ~ 40dB (120Hz) |
| Voltage Dropout (Max) | 0.55V @ 1.5A |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Current - Supply (Max) | 15 mA |
