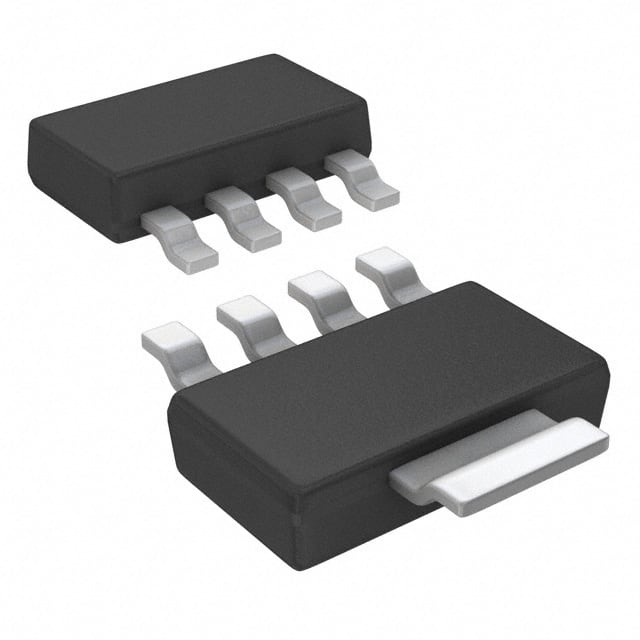

LP3965EMP-ADJ
IC REG LIN POS ADJ 1.5A SOT223-5Manufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments LP3965EMP-ADJ is a positive, adjustable linear voltage regulator designed for high-performance applications. This device delivers a stable output voltage from 1.216V up to 5.1V with a maximum input voltage of 7V. Featuring a substantial 1.5A output current capability, it incorporates over-current, over-temperature, and short-circuit protection for robust operation. The regulator exhibits a low dropout voltage of 0.55V at 1.5A and offers a typical quiescent current of 9mA. Its Power Supply Rejection Ratio (PSRR) ranges from 60dB to 40dB across a 120Hz frequency spectrum, ensuring excellent noise immunity. The LP3965EMP-ADJ includes an enable pin for flexible control and is supplied in a SOT-223-5 surface-mount package on tape and reel. This component is suitable for use in various industries including automotive, consumer electronics, and industrial systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-261-5, TO-261AB |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1.5A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 9 mA |
| Voltage - Input (Max) | 7V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-223-5 |
| Voltage - Output (Max) | 5.1V |
| Voltage - Output (Min/Fixed) | 1.216V |
| Control Features | Enable |
| PSRR | 60dB ~ 40dB (120Hz) |
| Voltage Dropout (Max) | 0.55V @ 1.5A |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Current - Supply (Max) | 15 mA |
