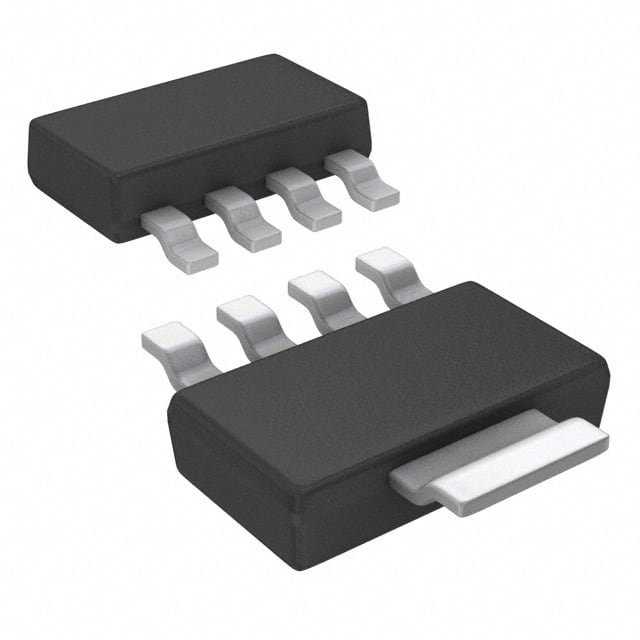

LP3964EMP-ADJ
IC REG LIN POS ADJ 800MA SOT223Manufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments LP3964EMP-ADJ is an adjustable positive linear voltage regulator. This device offers an 800mA output current capability with a low dropout voltage of 0.35V at 800mA. The output voltage is adjustable from 1.216V up to a maximum of 5.1V, with an input voltage range up to 7V. Key control features include an Enable pin for power sequencing and robust protection mechanisms such as over-current, over-temperature, and short-circuit protection. The LP3964EMP-ADJ is housed in a SOT-223-5 package, suitable for surface mount applications. Typical applications for this component include telecommunications, automotive systems, and consumer electronics where reliable voltage regulation is critical. The quiescent current is 9mA.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-261-5, TO-261AB |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 800mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 9 mA |
| Voltage - Input (Max) | 7V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-223-5 |
| Voltage - Output (Max) | 5.1V |
| Voltage - Output (Min/Fixed) | 1.216V |
| Control Features | Enable |
| PSRR | - |
| Voltage Dropout (Max) | 0.35V @ 800mA |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Current - Supply (Max) | 15 mA |
