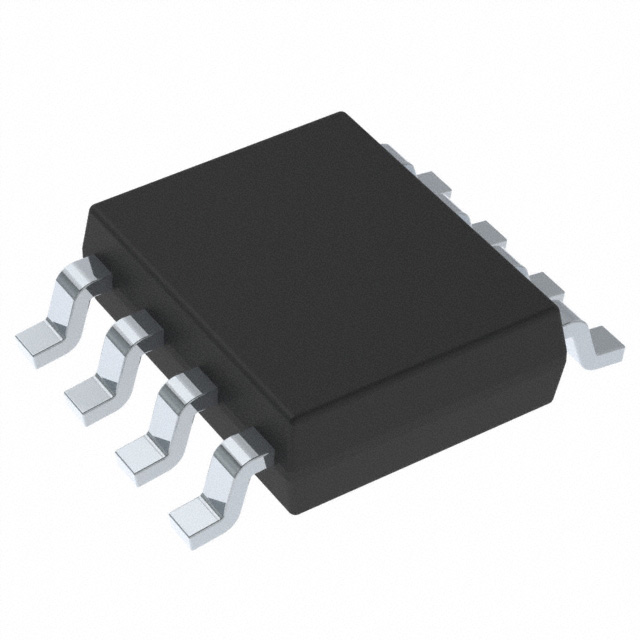

LP3879MR-1.2
IC REG LIN 1.2V 800MA 8SO PWRPADManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments LP3879MR-1-2 is an 8-SO PowerPad linear voltage regulator designed for applications demanding stable and efficient power. This positive fixed output regulator provides 1.2V with an 800mA output current capability. It features an enable pin for control and offers robust protection against over current, over temperature, and short circuits. The device exhibits a quiescent current of 1.4mA and a Power Supply Rejection Ratio (PSRR) of 60dB at 1kHz, making it suitable for noise-sensitive applications. With a maximum input voltage of 6V and an operating temperature range of -40°C to 125°C, this component finds utility in automotive, industrial, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-PowerSOIC (0.154"", 3.90mm Width) |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 800mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1.4 mA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-SO PowerPad |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.2V |
| Control Features | Enable |
| PSRR | 60dB (1kHz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Current - Supply (Max) | 2.2 mA |
