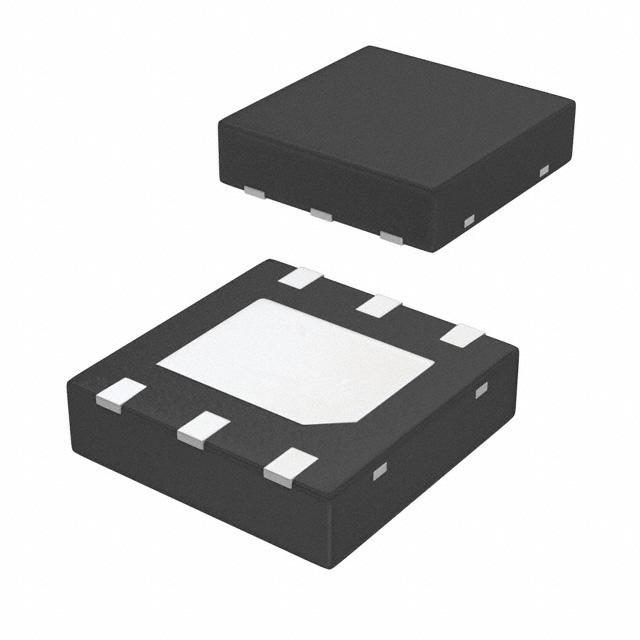

LP38692SDX-1.8/NOPB
IC REG LINEAR 1.8V 1A 6WSONManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments LP38692SDX-1-8-NOPB is a fixed 1.8V, 1A linear voltage regulator with a low quiescent current of 55 µA. This device features a rapid transient response and is designed for applications requiring high performance and low power consumption. The regulator offers excellent power supply rejection ratio (PSRR) of 55dB at 120Hz and includes over-temperature protection. With a maximum input voltage of 10V and a dropout voltage of 1.6V at 1A, the LP38692SDX-1-8-NOPB is suitable for power-sensitive systems. The component is housed in a 6-WSON (3x3) package and is supplied on tape and reel. It finds application in various industries including automotive, industrial, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 55 µA |
| Voltage - Input (Max) | 10V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-WSON (3x3) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V |
| Control Features | - |
| PSRR | 55dB (120Hz) |
| Voltage Dropout (Max) | 1.6V @ 1A |
| Protection Features | Over Temperature |
| Current - Supply (Max) | 100 µA |
