LP2985AIBPX-2.8/NOPB
IC REG LINEAR 2.8V 150MA 5USMDManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

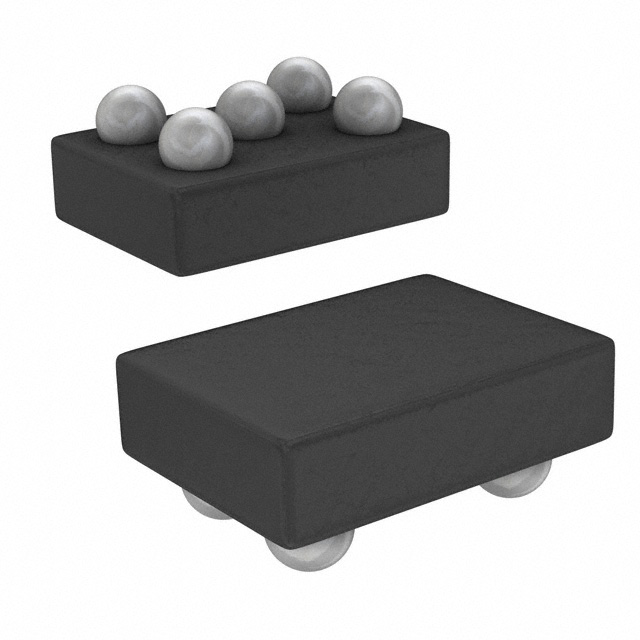

Texas Instruments LP2985AIBPX-2-8-NOPB is a positive fixed output voltage linear regulator. This component delivers a stable 2.8V output with a maximum output current of 150mA. Designed for surface mount applications, it is supplied in a compact 5-µSMD (0.93x1.11) package, presented on tape and reel. Key features include an enable pin for control, low quiescent current of 95 µA, and robust protection circuitry including over current, over temperature, and short circuit capabilities. The device exhibits a maximum input voltage of 16V and a dropout voltage of 0.58V at its full 150mA output. Its Power Supply Rejection Ratio (PSRR) is rated at 45dB at 1kHz. This regulator is commonly utilized in applications such as battery-powered devices and portable electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-VFBGA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 95 µA |
| Voltage - Input (Max) | 16V |
| Number of Regulators | 1 |
| Supplier Device Package | 5-µSMD (0.93x1.11) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.8V |
| Control Features | Enable |
| PSRR | 45dB (1kHz) |
| Voltage Dropout (Max) | 0.58V @ 150mA |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Current - Supply (Max) | 2.5 mA |
