LP2967ITPX-1833/NOPB
IC REG LIN 1.8V/3.3V 150MA 8USMDManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

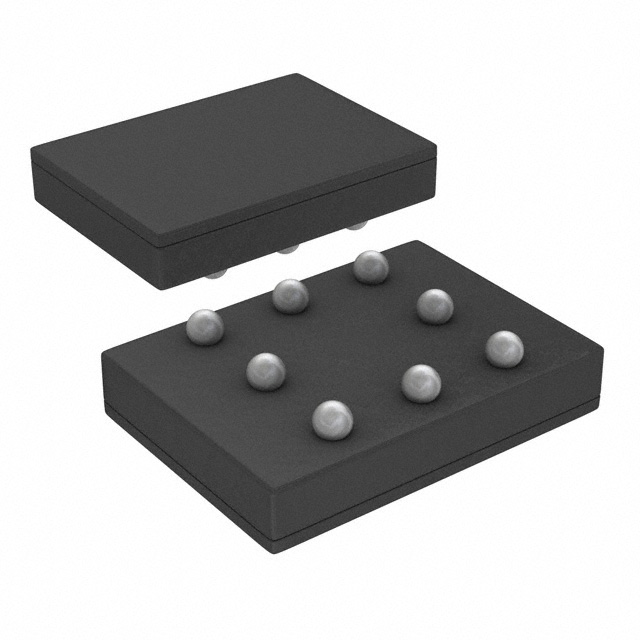

The Texas Instruments LP2967ITPX-1833-NOPB is a dual-output positive fixed linear voltage regulator. This component delivers 150mA per output with a low quiescent current of 300 µA and a maximum input voltage of 16V. Featuring a voltage dropout of 0.42V at 150mA, it offers excellent power supply rejection ratio (PSRR) ranging from 52dB to 70dB across a frequency band of 120Hz to 1MHz. The LP2967ITPX-1833-NOPB includes over-current, over-temperature, and short-circuit protection. Its 8-DSBGA package is suitable for surface-mount applications and operates within a temperature range of -40°C to 125°C. This device is utilized in various applications including portable electronics and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFBGA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 300 µA |
| Voltage - Input (Max) | 16V |
| Number of Regulators | 2 |
| Supplier Device Package | 8-DSBGA |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V, 3.3V |
| Control Features | Enable |
| PSRR | 52dB ~ 70dB (120Hz ~ 1MHz) |
| Voltage Dropout (Max) | 0.42V @ 150mA |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Current - Supply (Max) | 5 mA |
