LP2967IBP-2833/NOPB
IC REG LIN 2.8V/3.3V 150MA 8USMDManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments LP2967IBP-2833-NOPB is a dual-output, 150mA fixed linear voltage regulator. This device offers distinct 2.8V and 3.3V outputs, each capable of delivering up to 150mA. Designed for efficiency, it features a low quiescent current of 300 µA. The regulator boasts robust protection circuitry, including over-current, over-temperature, and short-circuit protection. Its power supply rejection ratio (PSRR) ranges from 52dB to 70dB across a frequency spectrum of 120Hz to 1MHz, making it suitable for noise-sensitive applications. The LP2967IBP-2833-NOPB operates with an input voltage range up to 16V and a maximum dropout voltage of 0.42V at 150mA. This component is commonly employed in portable electronics, automotive systems, and power management solutions requiring stable, low-dropout voltage regulation. It is supplied in an 8-uSMD package on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

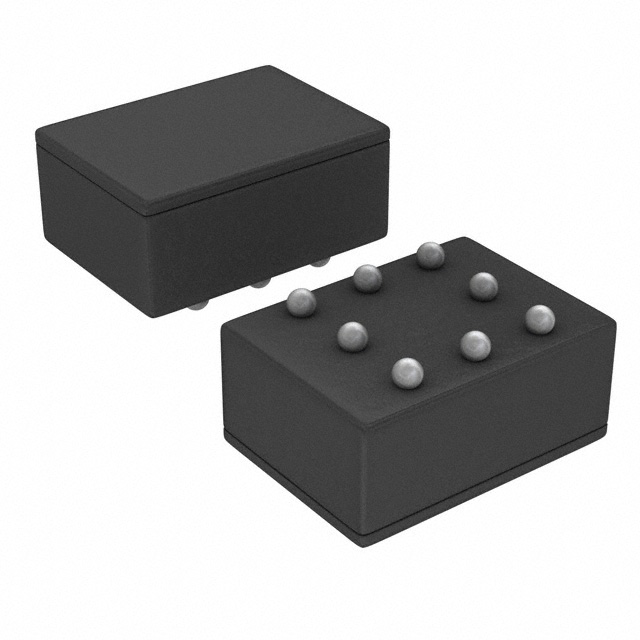

| Package / Case | 8-VFBGA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 300 µA |
| Voltage - Input (Max) | 16V |
| Number of Regulators | 2 |
| Supplier Device Package | 8-uSMD |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.8V, 3.3V |
| Control Features | Enable |
| PSRR | 52dB ~ 70dB (120Hz ~ 1MHz) |
| Voltage Dropout (Max) | 0.42V @ 150mA |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Current - Supply (Max) | 5 mA |
