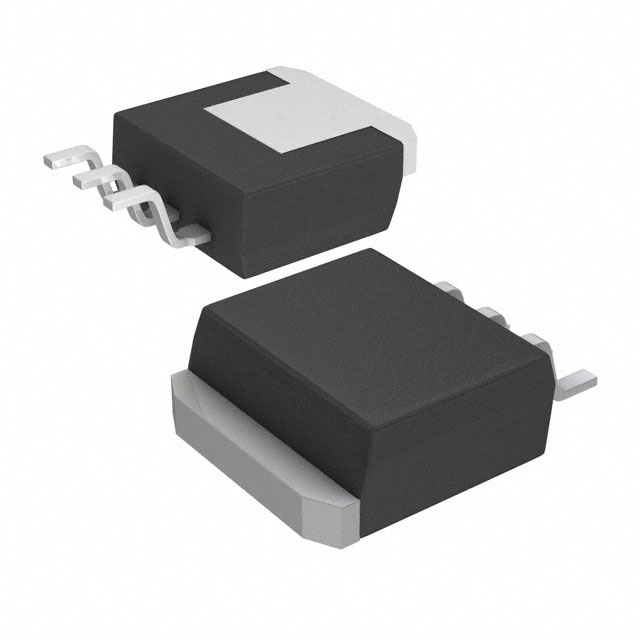

LMS1587CSX-3.3
IC REG LIN 3.3V 3A DDPAK/TO263-3Manufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments' LMS1587CSX-3-3 is a positive fixed 3.3V linear voltage regulator, capable of delivering up to 3A output current. This TO-263 (DDPAK-3) surface mount device offers a low dropout voltage of 1.3V at 3A. Key protection features include overcurrent and overtemperature protection. The component operates with a quiescent current of 7mA and a maximum input voltage of 13V. Its high power supply rejection ratio (PSRR) of 72dB at 120Hz makes it suitable for applications requiring clean power delivery. This regulator finds application in consumer electronics, industrial control, and power management systems. The device is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 36 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 3A |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 7 mA |
| Voltage - Input (Max) | 13V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-263 (DDPAK-3) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | - |
| PSRR | 72dB (120Hz) |
| Voltage Dropout (Max) | 1.3V @ 3A |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 13 mA |
