LM78M15CH/NOPB
IC REG LINEAR 15V 500MA TO39-3Manufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

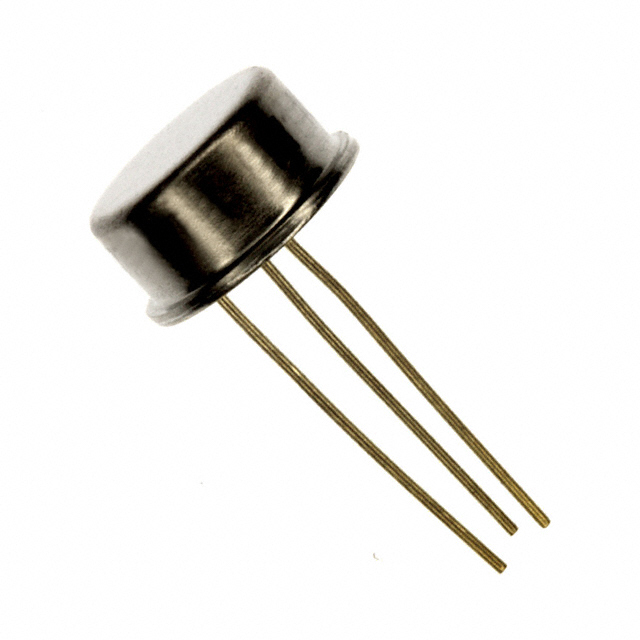

The Texas Instruments LM78M15CH-NOPB is a positive, fixed 15V linear voltage regulator. This device delivers a stable 500mA output current with a typical quiescent current of 3mA. Designed for through-hole mounting in a TO-39-3 metal can package (TO-205AD), it offers robust protection features including over-current, over-temperature, and short-circuit protection. The input voltage range extends up to 35V, and it provides a Power Supply Rejection Ratio (PSRR) of 69dB at 120Hz. This component is commonly utilized in industrial and consumer electronics applications requiring reliable voltage regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | TO-205AD, TO-39-3 Metal Can |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 3 mA |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-3 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 15V |
| Control Features | - |
| PSRR | 69dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
