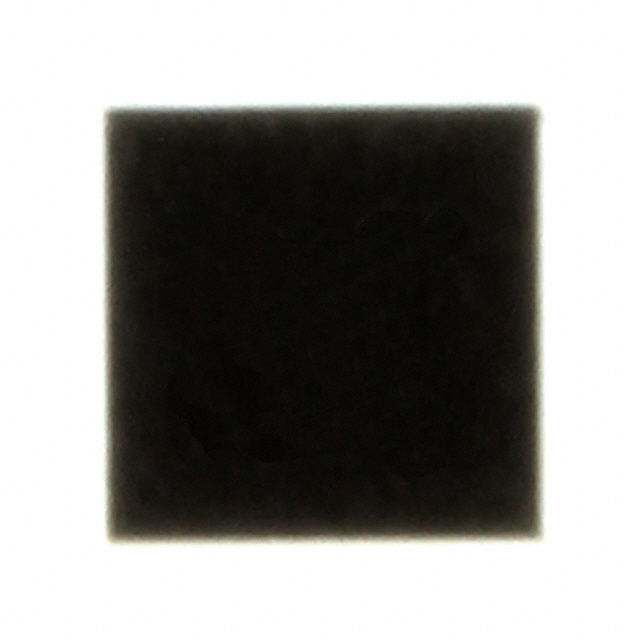

LM78L05IBP
IC REG LINEAR 5V 100MA 8USMDManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments LM78L05IBP is a positive, fixed 5V linear voltage regulator IC. This component delivers a stable 100mA output current, supported by over-temperature and short-circuit protection features. It operates with a maximum input voltage of 35V and exhibits a power supply rejection ratio (PSRR) of 62dB at 120Hz. The device is supplied in an 8-uSMD package, specifically an 8-VFBGA, utilizing tape and reel packaging. Key applications for this component include consumer electronics, industrial control systems, and telecommunications infrastructure.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VFBGA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 100mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 3 mA |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-uSMD |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | - |
| PSRR | 62dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Temperature, Short Circuit |
