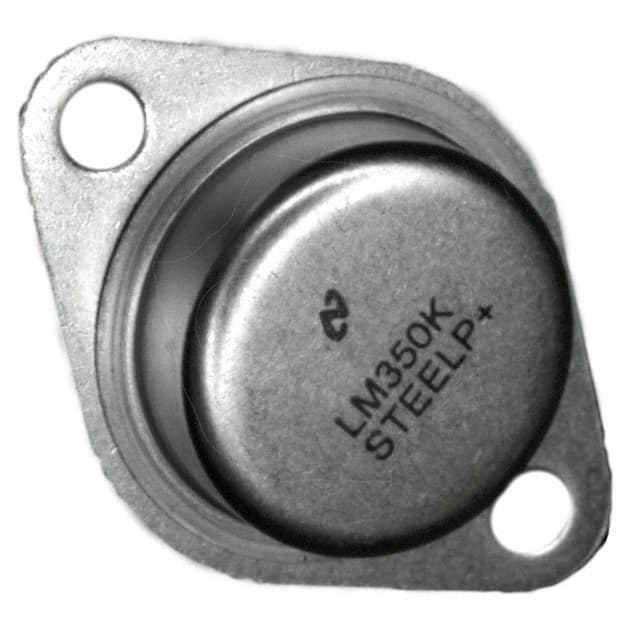

LM350K STEEL
IC REG LINEAR POS ADJ 3A TO3-2Manufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Texas Instruments LM350K-STEEL is a positive adjustable linear voltage regulator designed for high-current applications. This component provides an output current of up to 3A and features adjustable output voltage capabilities ranging from 1.25V to 33V. The device is housed in a TO-3-2 (TO-204AA) package, suitable for through-hole mounting and demanding thermal management. Key protection features include over-current, over-temperature, and short-circuit protection, ensuring robust operation. With a maximum input voltage of 35V and a typical power supply rejection ratio (PSRR) of 86dB at 120Hz, the LM350K-STEEL is well-suited for power supply regulation in industrial control systems, telecommunications infrastructure, and automotive electronics. It operates within a temperature range of 0°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | TO-204AA, TO-3 |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 3A |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-3-2 |
| Voltage - Output (Max) | 33V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Control Features | - |
| PSRR | 86dB ~ 65dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
