LM340AT-5.0
IC REG LINEAR 5V 1.5A TO220-3Manufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

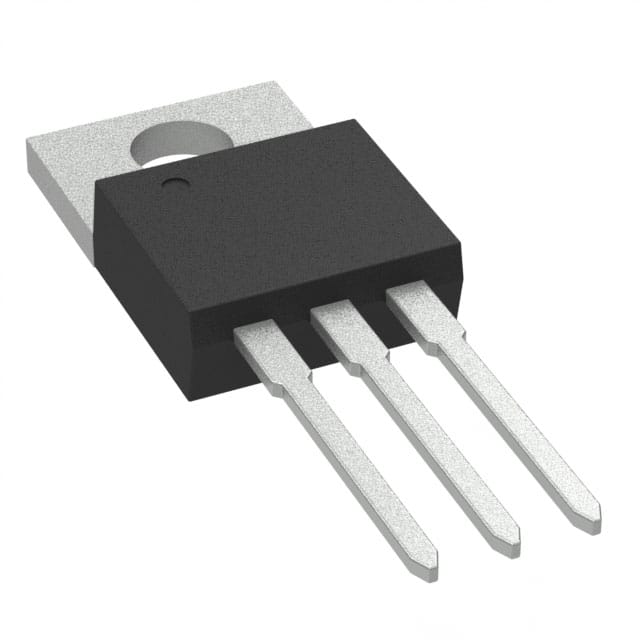

Texas Instruments LM340AT-5-0 is a positive fixed output voltage linear regulator with a 5V output and 1.5A maximum output current. This TO-220-3 packaged device features overcurrent and short-circuit protection. It operates from an input voltage range up to 35V and has a quiescent current of 6 mA. The LM340AT-5-0 offers a typical power supply rejection ratio of 70dB at 120Hz. The dropout voltage is rated at 2V at 1A. This component is commonly utilized in power supply applications across various industries, including industrial automation and consumer electronics. It is designed for through-hole mounting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 1.5A |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 6 mA |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-3 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | - |
| PSRR | 70dB (120Hz) |
| Voltage Dropout (Max) | 2V @ 1A |
| Protection Features | Over Current, Short Circuit |
