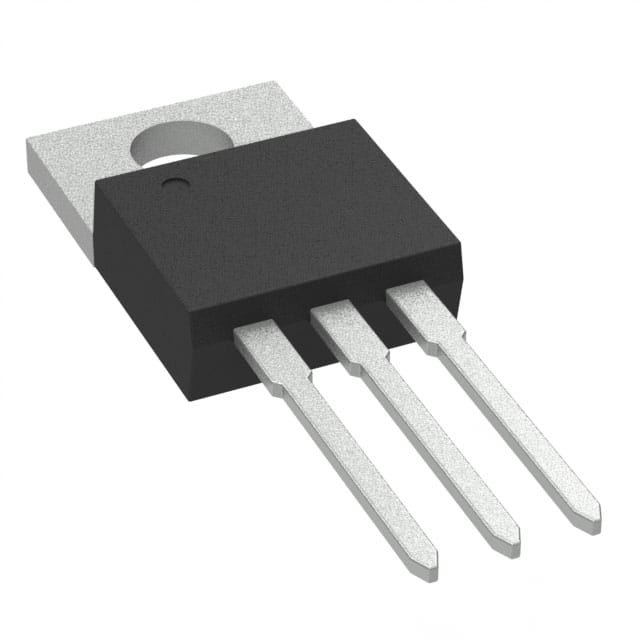

LM337T
IC REG LIN NEG ADJ 1.5A TO220-3Manufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Texas Instruments LM337T is a negative adjustable linear voltage regulator with a 1.5A output current capability. This through-hole component, housed in a TO-220-3 package, offers an adjustable output voltage range from -1.2V to -37V, with a maximum input voltage of -40V. Key protection features include over-temperature and short-circuit protection, ensuring robust operation. The device exhibits a Power Supply Rejection Ratio (PSRR) of 77dB at 120Hz, making it suitable for applications requiring stable power delivery. Operating within a temperature range of 0°C to 125°C, the LM337T is commonly found in power supply designs for industrial control, consumer electronics, and telecommunications equipment.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 1.5A |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Negative |
| Voltage - Input (Max) | -40V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-3 |
| Voltage - Output (Max) | -37V |
| Voltage - Output (Min/Fixed) | -1.2V |
| Control Features | - |
| PSRR | 77dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Temperature, Short Circuit |
