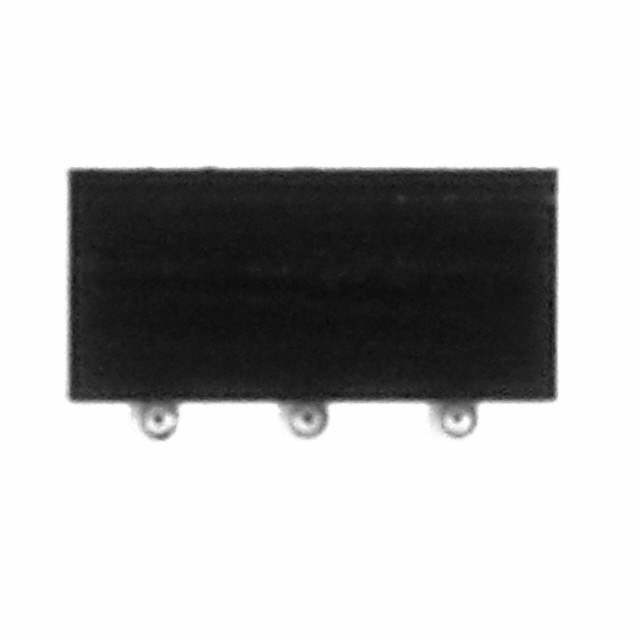

LM317LIBP
IC REG LIN POS ADJ 100MA 6DSBGAManufacturer: Texas Instruments
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Texas Instruments LM317LIBP is a positive, adjustable linear voltage regulator with an output current capability of 100mA. This device features a wide input voltage range up to 40V and an adjustable output voltage from 1.2V to 37V. Integrated protection features include over current, over temperature, and short circuit protection. The LM317LIBP offers excellent power supply rejection ratio (PSRR) performance, ranging from 80dB to 65dB across frequencies from 120Hz. Housed in a compact 6-DSBGA (6-VFBGA) package for surface mounting, it operates within an ambient temperature range of -40°C to 125°C. This component is suitable for applications in consumer electronics, industrial control systems, and power management modules.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-VFBGA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 100mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 2.5 mA |
| Voltage - Input (Max) | 40V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-DSBGA |
| Voltage - Output (Max) | 37V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Control Features | - |
| PSRR | 80dB ~ 65dB (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
